CIAM PRODUCTS- Original product

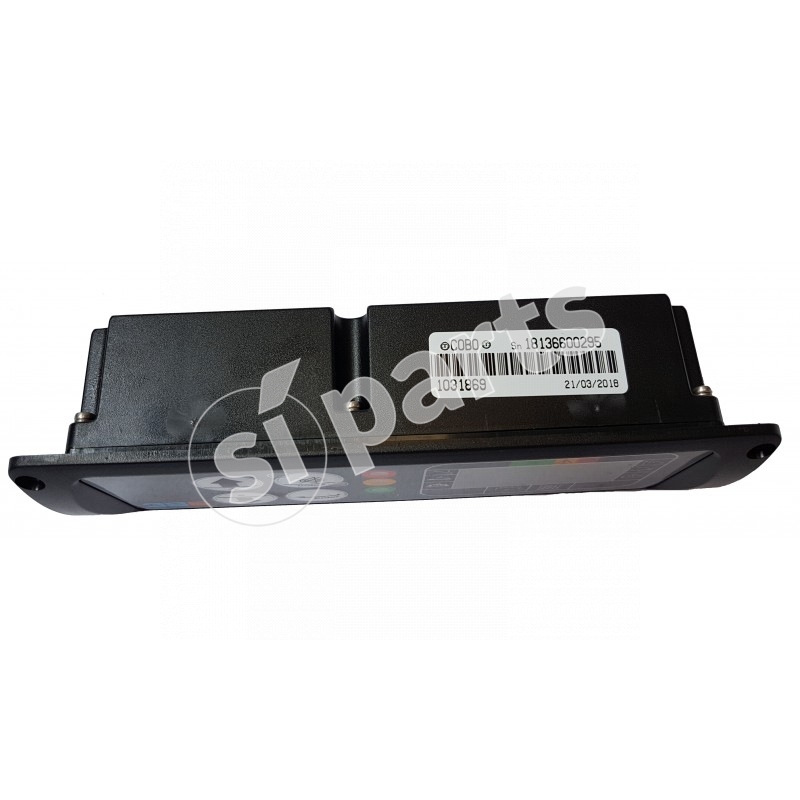

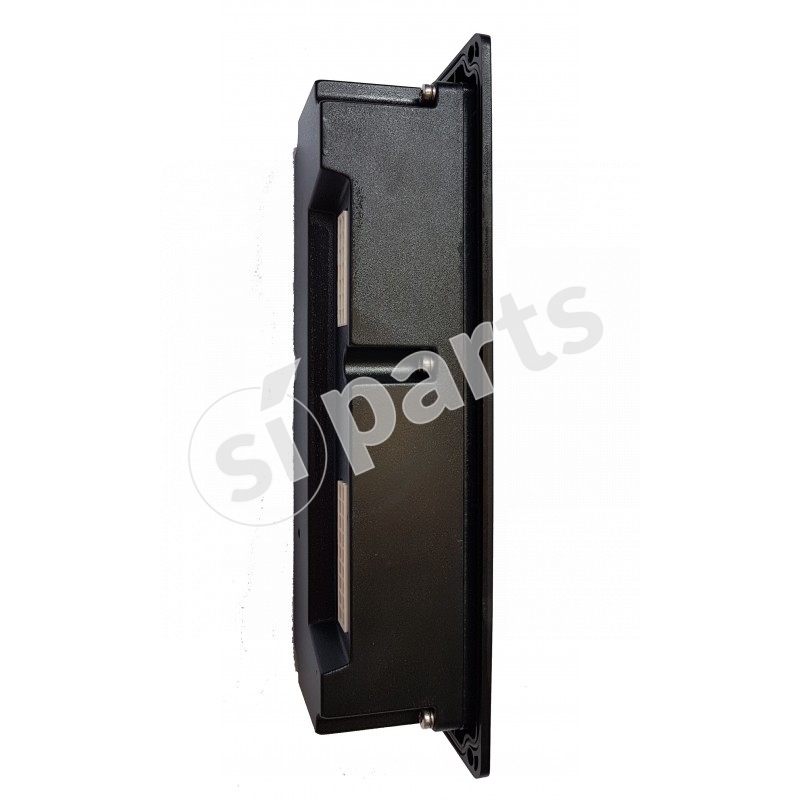

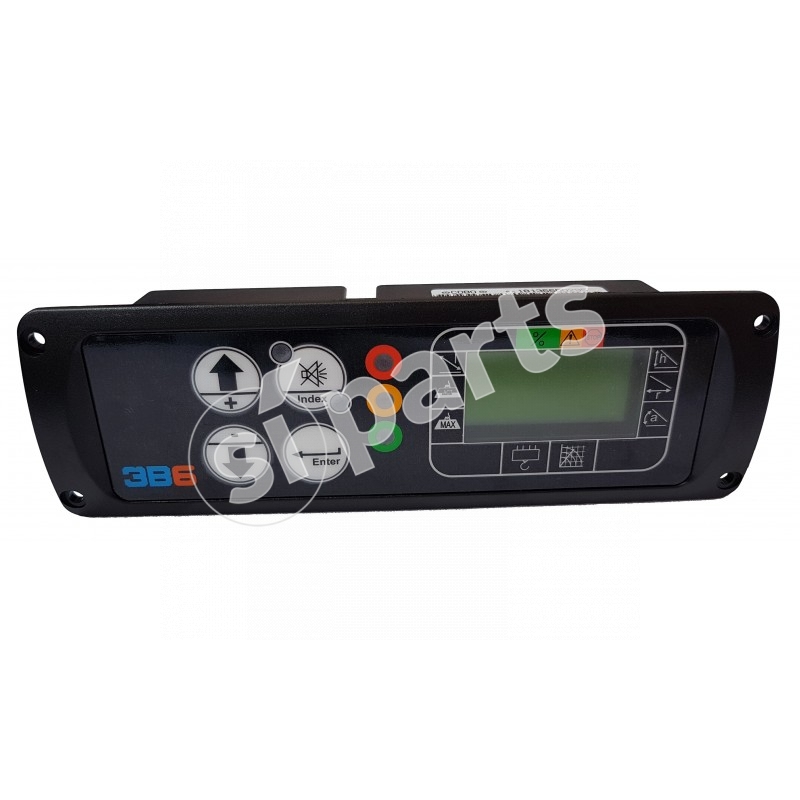

slim adjustable display
applications
the slim display is unique in its category, compact, complete with central unit, lcd graphic display and i / o resources.
the high number of configurable inputs and outputs, together with the power of the microprocessor and its memory capacity, allows to perform sophisticated checks on the machine.
the slim display is equipped with can-bus and rs232 to connect with can-bus networks, external pcs and printers.
applications
- integrated load limiter for truck and off-road cranes.
- controller for generic lifts.
- dashboard for telehandlers.
- weighing systems.
supply:
9-30v, maximum current absorption (activate outputs) 10a (necessary external fuse)
connector:
- 1 from 18 poles
- 1 from 14 poles
- minifit type
- 1 from 14 poles
- minifit type
container:
plastic with integrated keyboard
operating temperature:
-20°c | +70°c (-4°f | +158°f)
storage temperature:
-30°c | +85°f (-22°f | +185°f)
protection degree:
ip65
display:
- white / black
- visual corner 6:00
- white led retroillumination
- 128 x 64 pixel resolution
- visual corner 6:00
- white led retroillumination
- 128 x 64 pixel resolution
control system:
- freescale microprocessor 16 bit, 25 mhz
- flash memory 256 kb
- ram memory 12 kb
- 3 kb eeprom memory for parameter storage
- flash memory 256 kb
- ram memory 12 kb
- 3 kb eeprom memory for parameter storage
connectivity ':
- 2 can bus lines, can 2.08 (11 or 29 bit) complies with standard iso 11898-2, speed up to 1 mbit / s
- 1 rs232 line with programmable transmission speed (max 57600 baud)
- 1 buzzer
- 1 rs232 line with programmable transmission speed (max 57600 baud)
- 1 buzzer
i / o resources:
- 8 configurable analog / digital inputs
- 4 configurable analog / rpm / digital inputs
- 6 on / off / pwm outputs (2a at 24 v)
- 4 configurable analog / rpm / digital inputs
- 6 on / off / pwm outputs (2a at 24 v)
