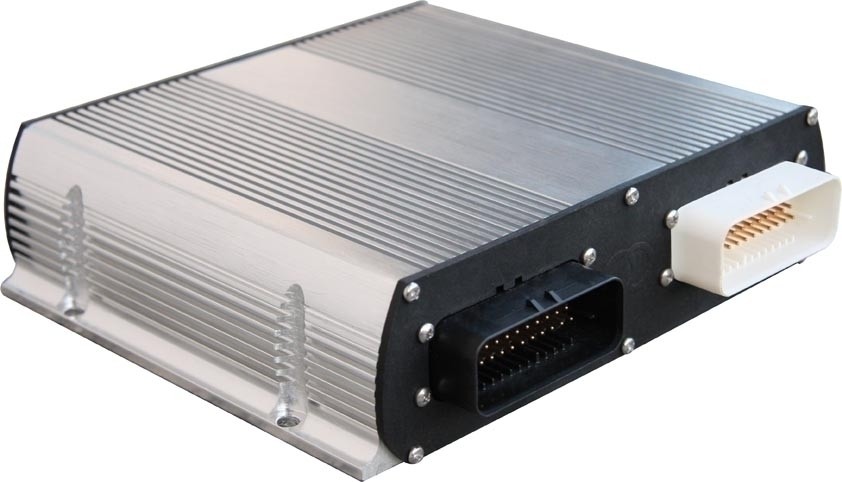

LE 70 :70 PINS MULTIPURPOSE CONTROLLER FOR MEDIUM-LARGE SIZE MACHINES
Description LE70 is a programmable controller for any mobile machine application. It has high I/O number, all configurable, self protected and with self diagnosis.
Designed with low cost per input/output, its typical application is as I/O expansion for big size machines.
Anyway it has double processing unit, so that it can be used also as Master controller, and also it allows safety standard according ISO EN13849 certification.
Programmable in C language or IEC 61131, using VT3 Software Development Tool.
APPLCATIONS
- Hydraulic system controller with many resources
- Single controller for industrial vehicles
- Controller for spreaders and port equipment
- TECU for tractors according to ISOBUS standard
- IECU for agriculture attachment devices for ISOBUS standard
- Wheel loaders or excavators single controller
Designed with low cost per input/output, its typical application is as I/O expansion for big size machines.
Anyway it has double processing unit, so that it can be used also as Master controller, and also it allows safety standard according ISO EN13849 certification.
Programmable in C language or IEC 61131, using VT3 Software Development Tool.
APPLCATIONS
- Hydraulic system controller with many resources
- Single controller for industrial vehicles
- Controller for spreaders and port equipment
- TECU for tractors according to ISOBUS standard
- IECU for agriculture attachment devices for ISOBUS standard
- Wheel loaders or excavators single controller

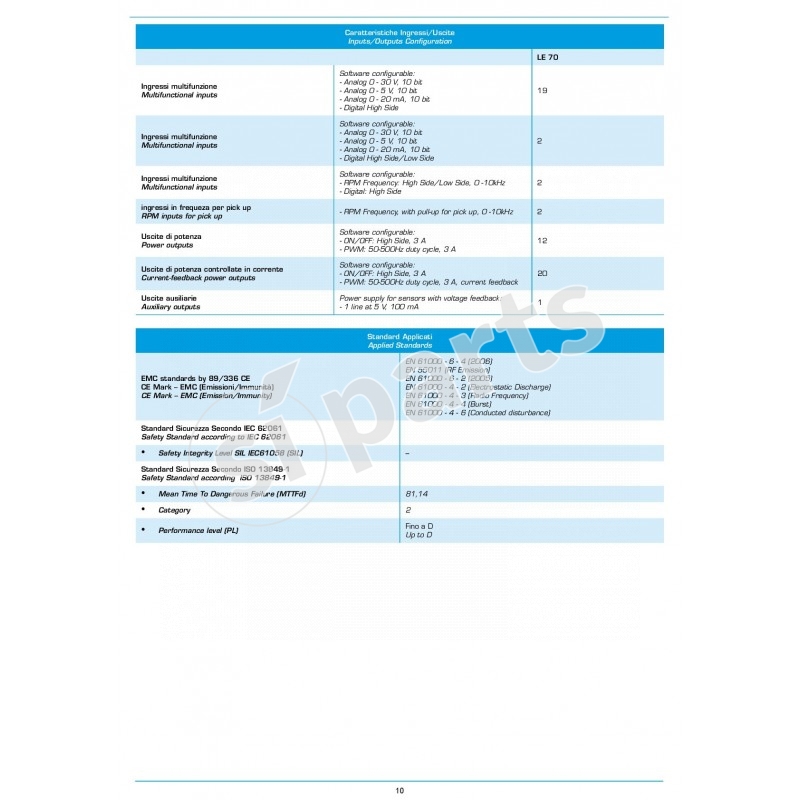

| INPUTSOUTPUTS | CONFIGURATION | NR. I/O |
|---|---|---|
| MULTIFUNCTIONAL INPUTS | Software configurable: | 19 |
| - Analog 0 - 30 V, 10 bit | ||
| - Analog 0 - 5 V, 10 bit | ||
| - Analog 0 - 20 mA, 10 bit | ||
| - Digital High Side | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 2 |
| - Analog 0 - 30 V, 10 bit | ||
| - Analog 0 - 5 V, 10 bit | ||
| - Analog 0 - 20 mA, 10 bit | ||
| - Digital High Side/Low Side | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 2 |
| - RPM Frequency: High Side/Low Side, 0 -10kHz | ||
| - Digital: High Side | ||
| RPM INPUTS FOR PICK UP | - RPM Frequency, with pull-up for pick up, 0 -10kH | 2 |
| POWER OUTPUT | Software configurable: | 12 |
| - ON/OFF: High Side, 3 A | ||
| - PWM: 50-500Hz duty cycle, 3 A | ||
| CURRENT-FEEDBACK POWER OUTPUTS | Software configurable: | 20 |
| - ON/OFF: High Side, 3 A | ||
| - PWM: 50-500Hz duty cycle, 3 A, current feedback | ||
| AUXILIARY OUTPUTS | Power supply for sensors with voltage feedback: | 1 |
| 1 line at 5 V, 100 mA |

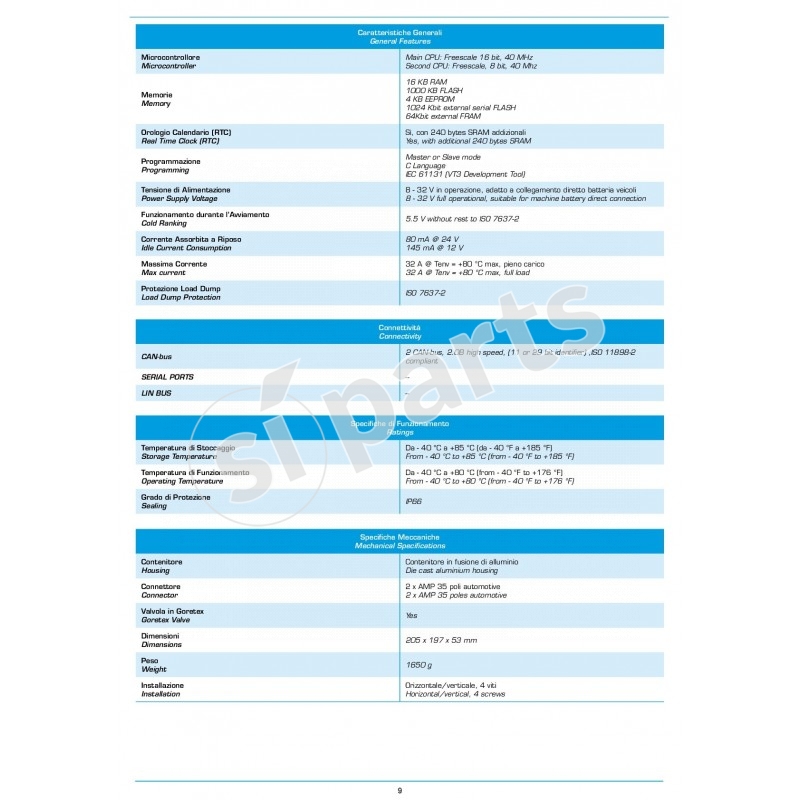

MICROCONTROLLER MAIN CPU
Freescale 16 bit, 40 MHz
MICROCONTROLLER SECOND CPU
Freescale, 8 bit, 40 Mhz
RAM MEMORY
64 KB
FLASH MEMORY
1000 KB
EEPROM MEMORY
4 KB
MEMORY EXTERNAL SERIAL FLASH
1024 Kbit
MEMORY EXTERNAL FRAM
64Kbit
REAL TIME CLOCK RTC
YES, WITH ADDITIONAL 240 BYTES SRAM
PROGRAMMING MODE
Master or Slave mode
PROGRAMMING LANGUAGE
C Language
SOFTWARE
IEC 61131 VT3 Development Tool
POWER SUPPLY VOLTAGE V
8 - 32V full operational, suitable for machine battery direct connection
COLD RANKING
5.5 V without rest to ISO 7637-2
IDLE CURRENT CONSUMPTION
80 mA @ 24V - 145 mA @ 12V
LOAD DUMP PROTECTION
ISO 7637-2
CAN BUS
2 CAN-bus, 2.0B high speed, 11 or 29 bit identifier ,ISO 11898-2 compliant
STORAGE TEMPERATURE
From - 40 °C to +85 °C from - 40 °F to +185 °F
OPERATING TEMPERATURE
From - 40 °C to +80 °C from - 40 °F to +176 °F
SEALING IEC 529
IP66
HOUSING
CONTENITORE IN FUSIONE DI ALLUMINIO
CONNECTOR
2 X AMP 35 POLES AUTOMOTIVE
GORETEX VALVE
YES
DIMENSIONS MM
205 x 197 x 53 mm
WEIGHT
1650 g
INSTALLATION
HORIZONTAL/VERTICAL, 4 SCREWS
EMC STANDARDS BY 89/336 CE CE MARK-EMC EMISSIONI/IMMUNITÀ
EN 61000 - 6 - 4 2006
EN 55011 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
EN 55011 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
SAFETY STANDARD ACCORDING ISO 13849-1 MEAN TIME TO DANGEROUS FAILURE MTTFD
81,14
SAFETY STANDARD ACCORDING ISO 13849-1CATEGORY
2
SAFETY STANDARD ACCORDING ISO 13849-1 PERFORMANCE LEVEL PL
Up to D
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
