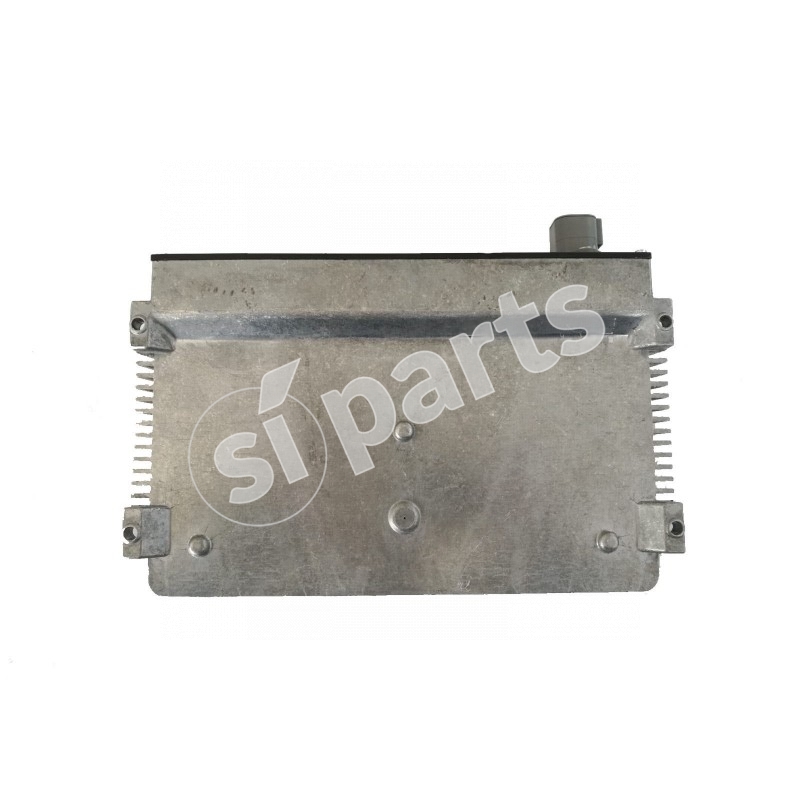

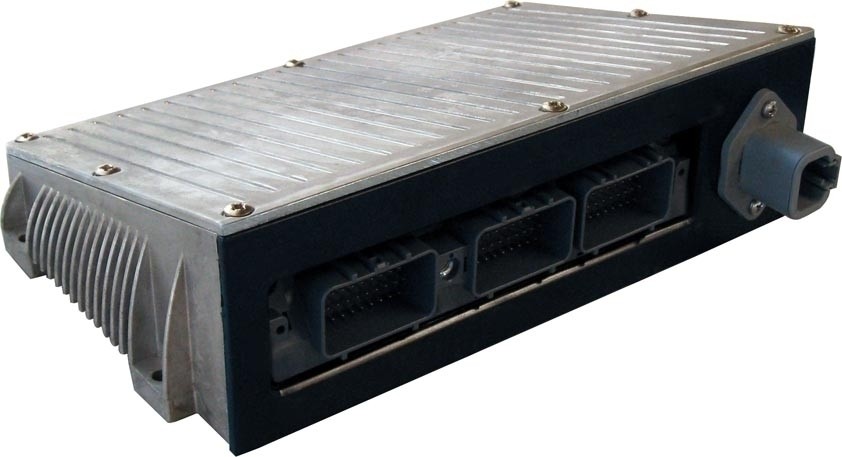

Description MC²M is a programmable controller for any mobile machine application. Its high I/O number, high configurability, diagnostic and its high power outputs allow an extensive signals concentration, to be used as single controller into many applications.
It has been designed for high end applications where safety standard according ISO EN13849 or EN280 for access platforms is required. Certified SIl 2 (TUV).
Programmable in C language or IEC 61131, using VT3 Software Development Tool.
APPLICATIONS
- High precision hydraulic systems controller

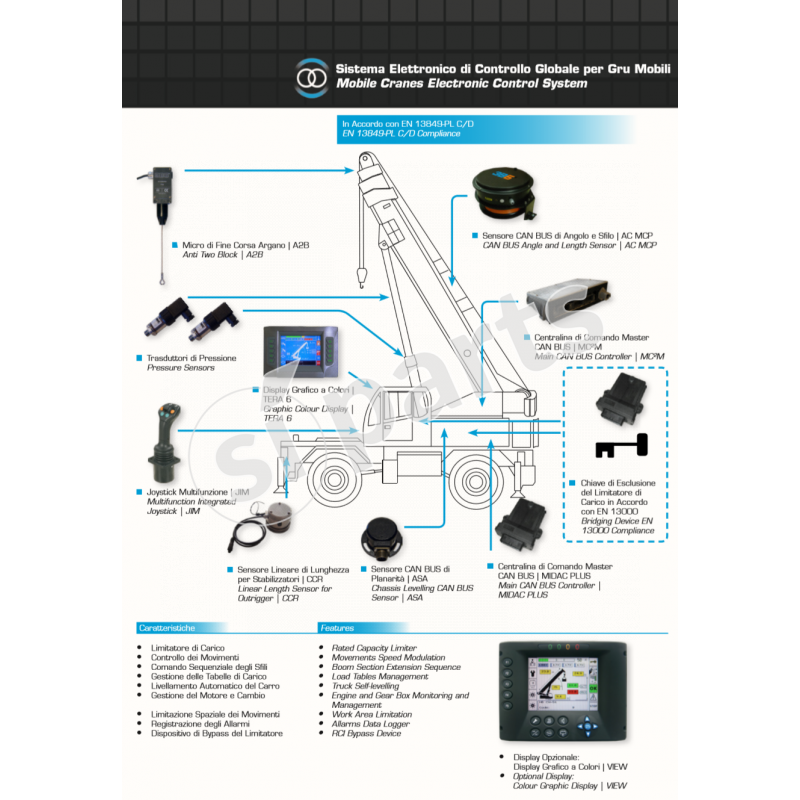

- Safety system for aerial platforms, firefighting, large size lifting machines and cranes
- Telehandlers centralized controller
- IECU for attachment devices in agriculture according to ISOBUS standard
- X-by wire systems
- Generic safety critical controller (up to PL-D)
It has been designed for high end applications where safety standard according ISO EN13849 or EN280 for access platforms is required. Certified SIl 2 (TUV).
Programmable in C language or IEC 61131, using VT3 Software Development Tool.
APPLICATIONS
- High precision hydraulic systems controller
- Safety system for aerial platforms, firefighting, large size lifting machines and cranes
- Telehandlers centralized controller
- IECU for attachment devices in agriculture according to ISOBUS standard
- X-by wire systems
- Generic safety critical controller (up to PL-D)
| INPUTSOUTPUTS | CONFIGURATION | NR. I/O |
|---|---|---|
| SAFETY CRITICAL INPUTS | Redundant input for safety critical applications: | 8 |
| - Analog: 0 .. 30 V | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 20 |
| - Analog: 0 - 30 V, 10 bit | ||
| - Analog: 0 - 5 V, 10 bit | ||
| - Digital: High Side/Low Side | ||
| - Variable resistance 0-300 Ohm | ||
| - Variable resistance 0-2500 Ohm | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 12 |
| - Analog: 0 - 20 mA, 10 bit | ||
| - Analog: 0 - 5 V, 10 bit | ||
| - Digital: High Side/Low Side | ||
| - Variable resistance 0-300 Ohm | ||
| - Variable resistance 0-2500 Ohm | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 8 |
| - Analog: 0 - 30 V, 10 bit | ||
| - Digital: High Side | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 4 |
| - RPM Frequency: High Side/Low Side, 0 -12kHz | ||
| - Digital: High Side/Low Side | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 4 |
| - RPM Frequency: High Side/Low Side, 0 -10kHz | ||
| - Digital: High Side | ||
| POWER OUTPUT | Software configurable: | 16 |
| - ON/OFF: High Side, 3A | ||
| - PWM: 50-500Hz duty cycle, 3A, current feedback | ||
| CURRENT-FEEDBACK POWER OUTPUTS | Software configurable: | 16 |
| - ON/OFF: High Side, 3A | ||
| - PWM: 50-500Hz duty cycle, 3A, current feedback | ||
| ANALOGUE OUTPUTS | Software configurable: | 8 |
| - 0 - 5 V | ||
| - 0 - 10 V | ||
| - 0 - 30 V Ratiometric | ||
| AUXILIARY OUTPUTS | Power supply for sensors with voltage feedback: | 1 |
| - 1 line at 5 V, 100 mA | ||
| - 1 line at 15 V, 100 mA |
MICROCONTROLLER CPU
2 x Freescale 16 bit, 40 MHz
RAM MEMORY
12 KB
FLASH MEMORY
256 KB
FLASH MEMORY DATA LOGGER
256 KB
REAL TIME CLOCK RTC
YES
POWER SUPPLY VOLTAGE V
8 - 32V full operational, suitable for machine battery direct connection
PROGRAMMING MODE
Master or Slave mode
PROGRAMMING LANGUAGE
C Language
SOFTWARE
IEC 61131 VT3 Development Tool
COLD RANKING
4.5V without rest to ISO 7637-2
IDLE CURRENT CONSUMPTION
250 mA @ 24V - 450 mA @ 12V
LOAD DUMP PROTECTION
ISO 7637-2
CAN BUS
3 CAN-bus, 2.0B high speed, 11 or 29 bit identifier ,ISO 11898-2 Termination resistor selectable
SERIAL PORTS
1 RS232-EIA- and ITU-T V28 compliant
LIN BUS
2 LIN bus 2.0, bus master type
STORAGE TEMPERATURE
from - 40 °C to +95 °C from - 40 °F to +203 °F
OPERATING TEMPERATURE
from - 40 °C to +85 °C from - 40 °F to +185 °F
SEALING IEC 529
IP66
HOUSING
CONTENITORE IN FUSIONE DI ALLUMINIO
CONNECTOR
TYCO 120 PIN FOR SIGNALS, DEUTCH 4 PIN FOR POWER SUPPLY
GORETEX VALVE
YES

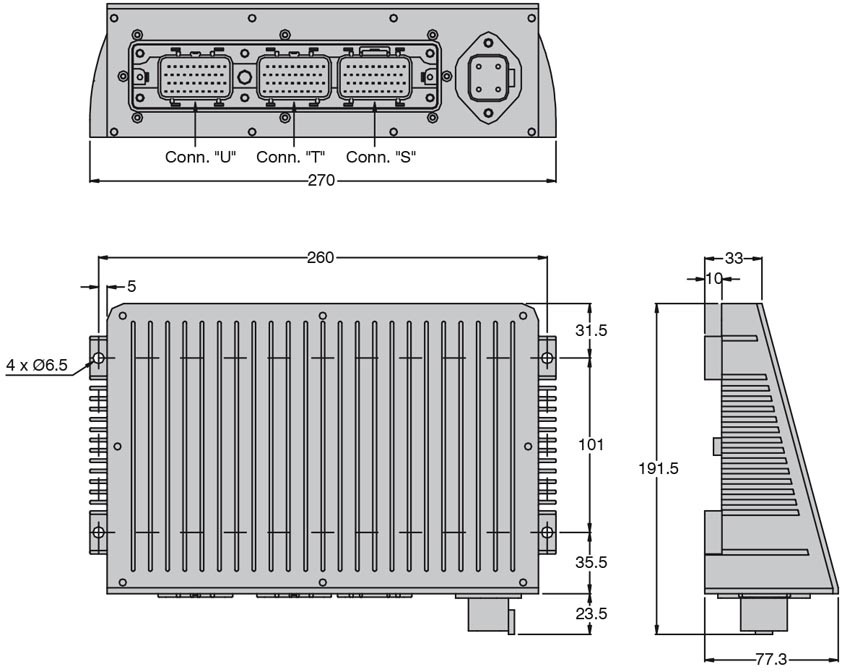

DIMENSIONS MM
270 X 191 X 77 mm
WEIGHT
1560 g
INSTALLATION
HORIZONTAL/VERTICAL, 4 SCREWS
EMC STANDARDS BY 89/336 CE CE MARK-EMC EMISSIONI/IMMUNITÀ
EN 61000 - 6 - 3 2006
EN 55022 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
EN 55022 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
SAFETY STANDARD ACCORDING TO IEC 62061
ISO 14982 Regulation 10
SAFETY INTEGRITY LEVEL SIL IEC61058 SIL
Up to 2
SAFETY STANDARD ACCORDING ISO 13849-1 MEAN TIME TO DANGEROUS FAILURE MTTFD
53,42
SAFETY STANDARD ACCORDING ISO 13849-1CATEGORY
2
SAFETY STANDARD ACCORDING ISO 13849-1 PERFORMANCE LEVEL PL
Up to D
AMERCAN BUREAU OF SHIPPING ABS
Certified according to ABS Rules For Building and Classing Steel Vessel part 4; chapter 9; Section

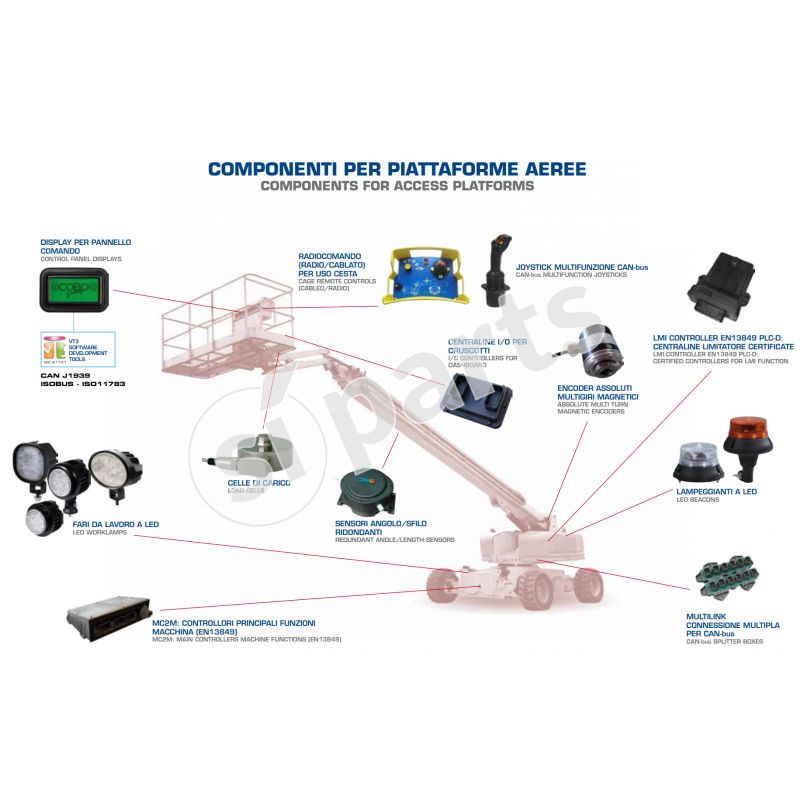

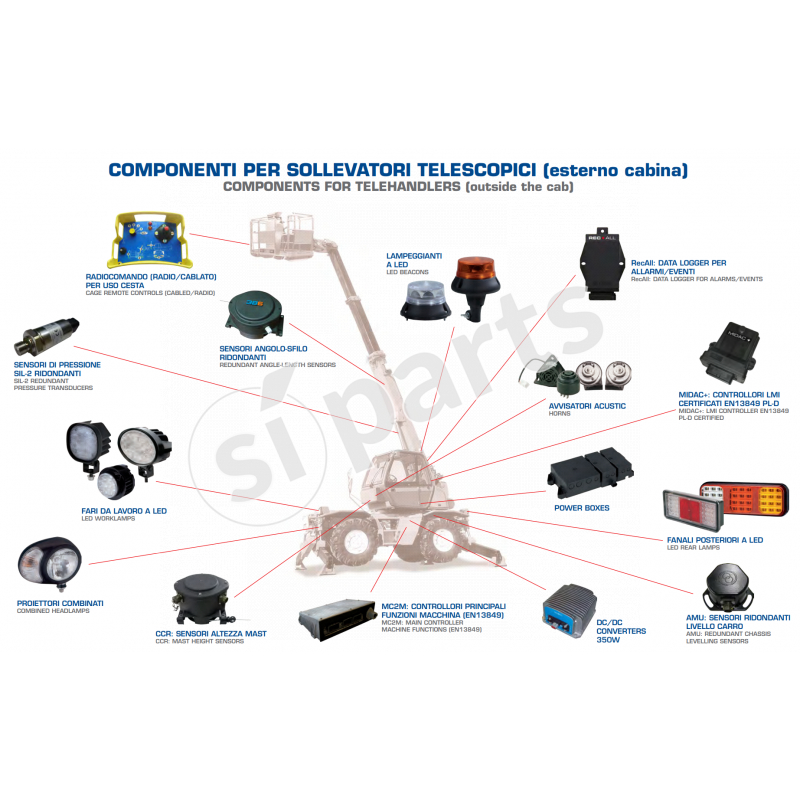

APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
