CABLE REEL ACQ 1P + AMU CAN CABLE STD CCW SX

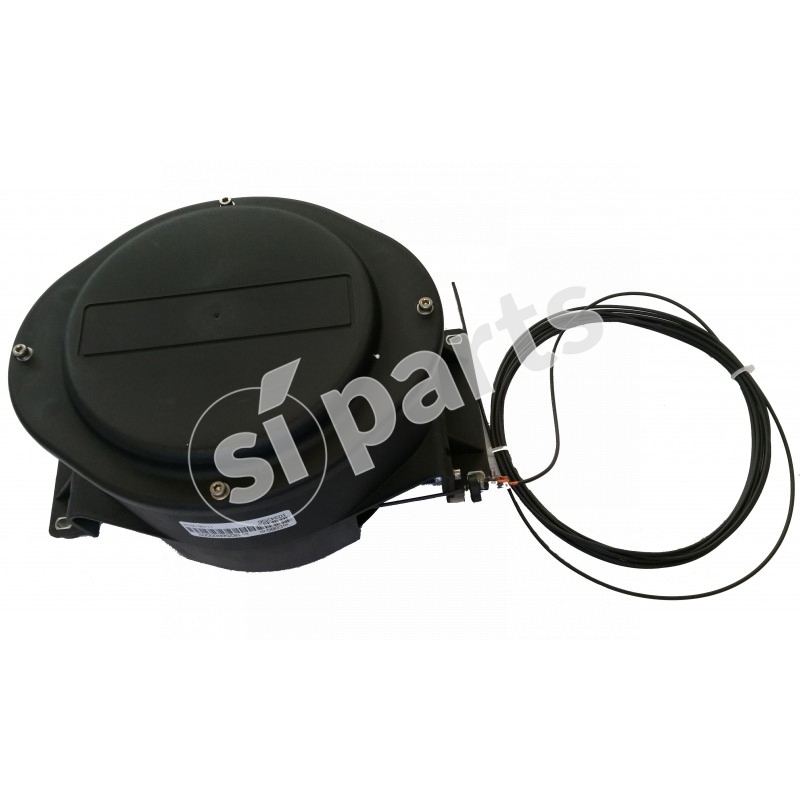

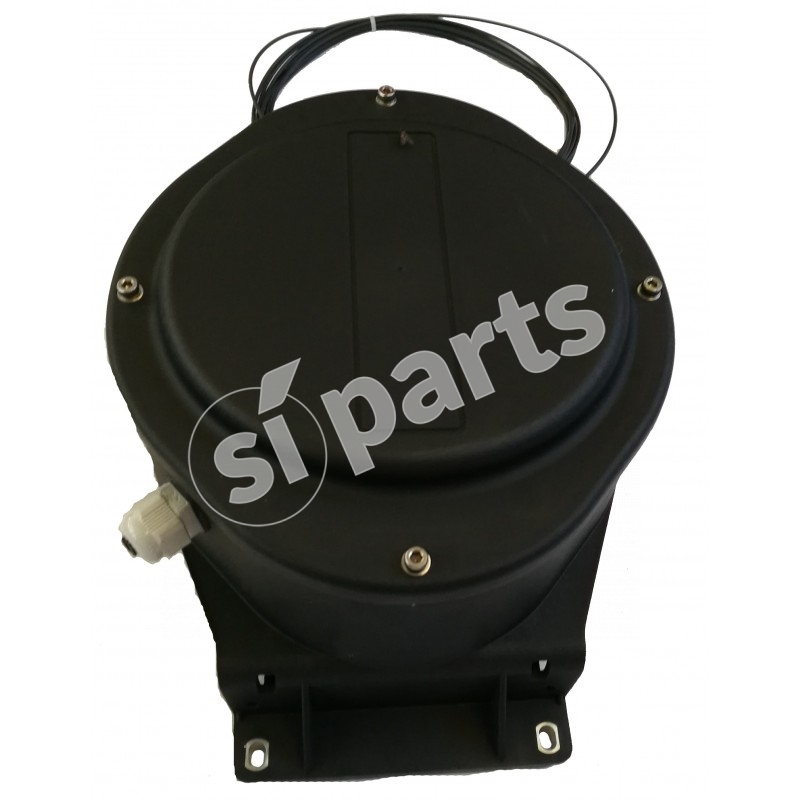

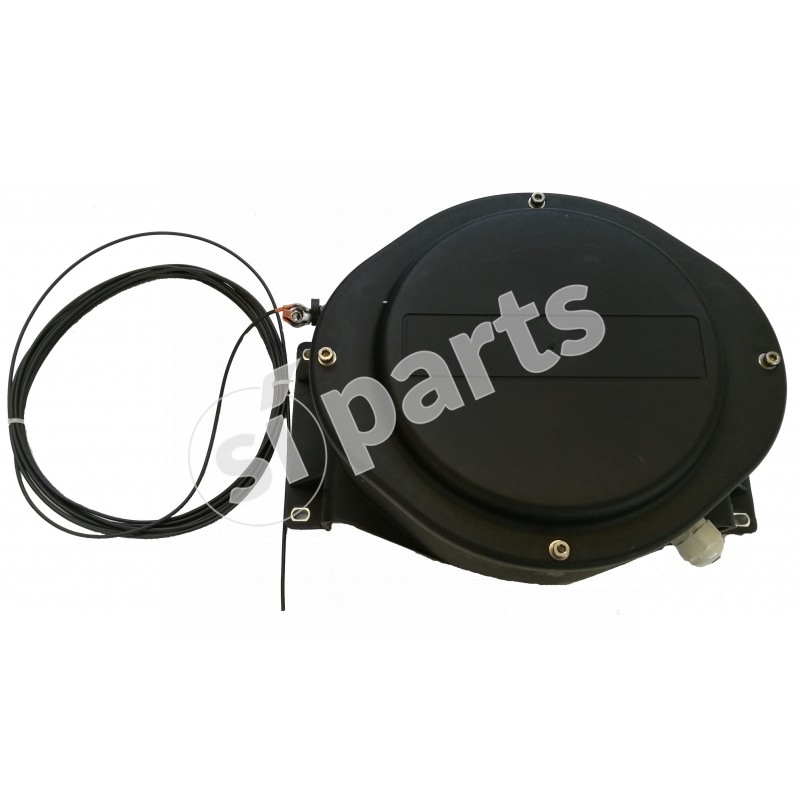

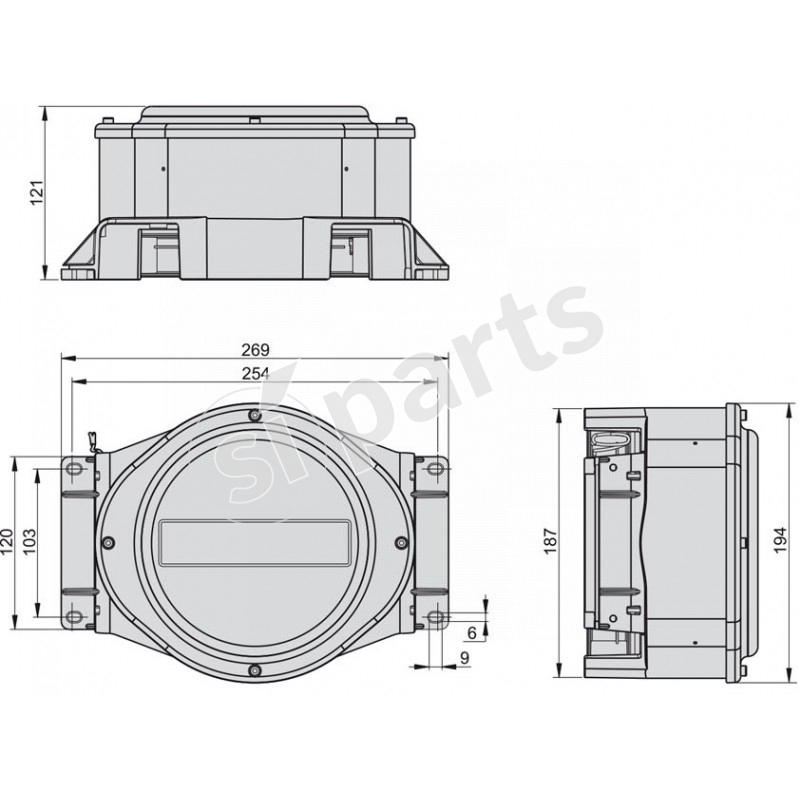

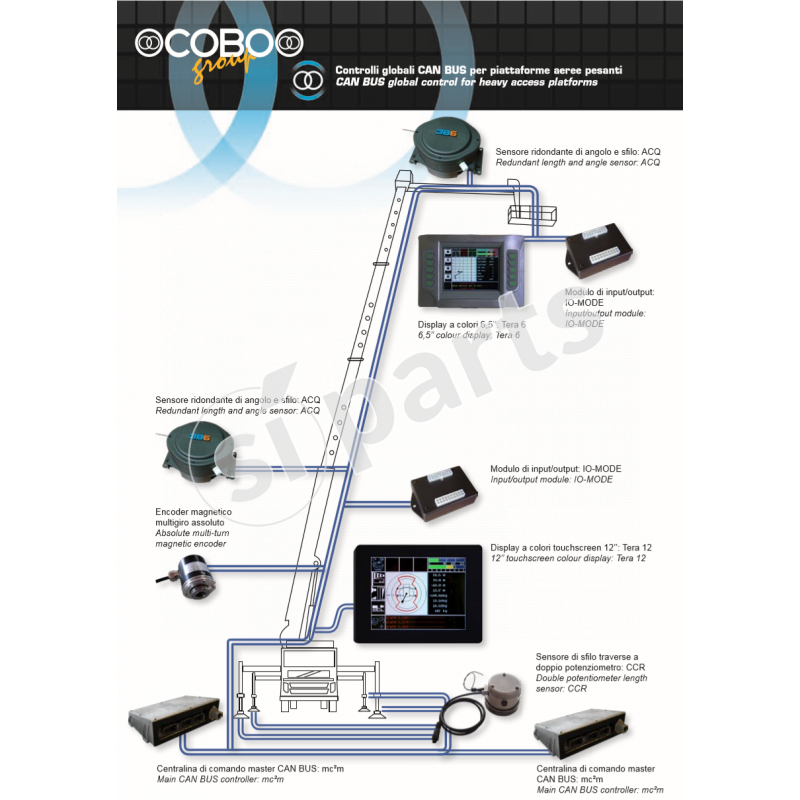

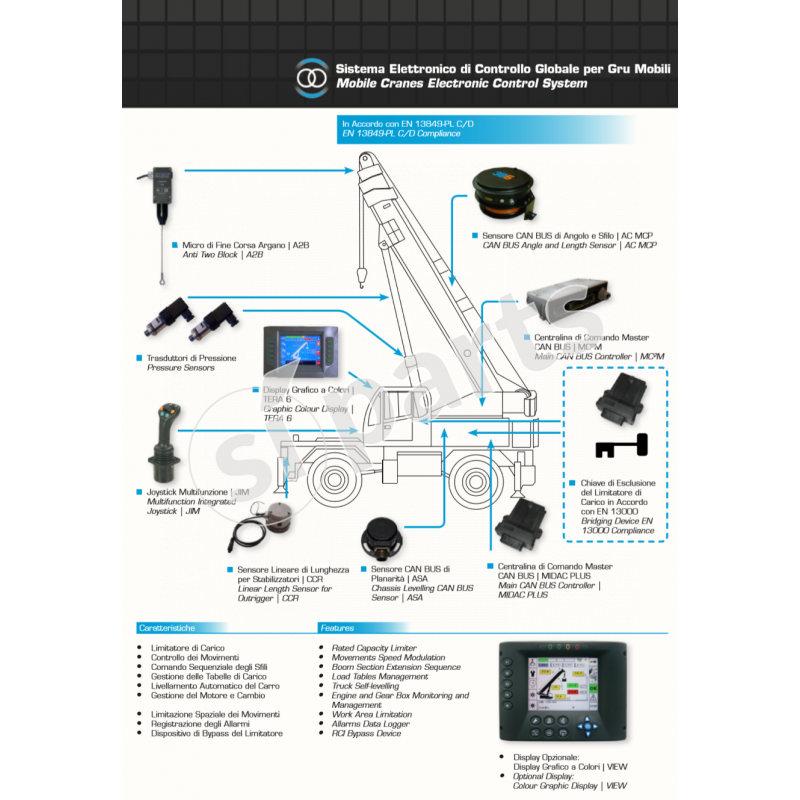

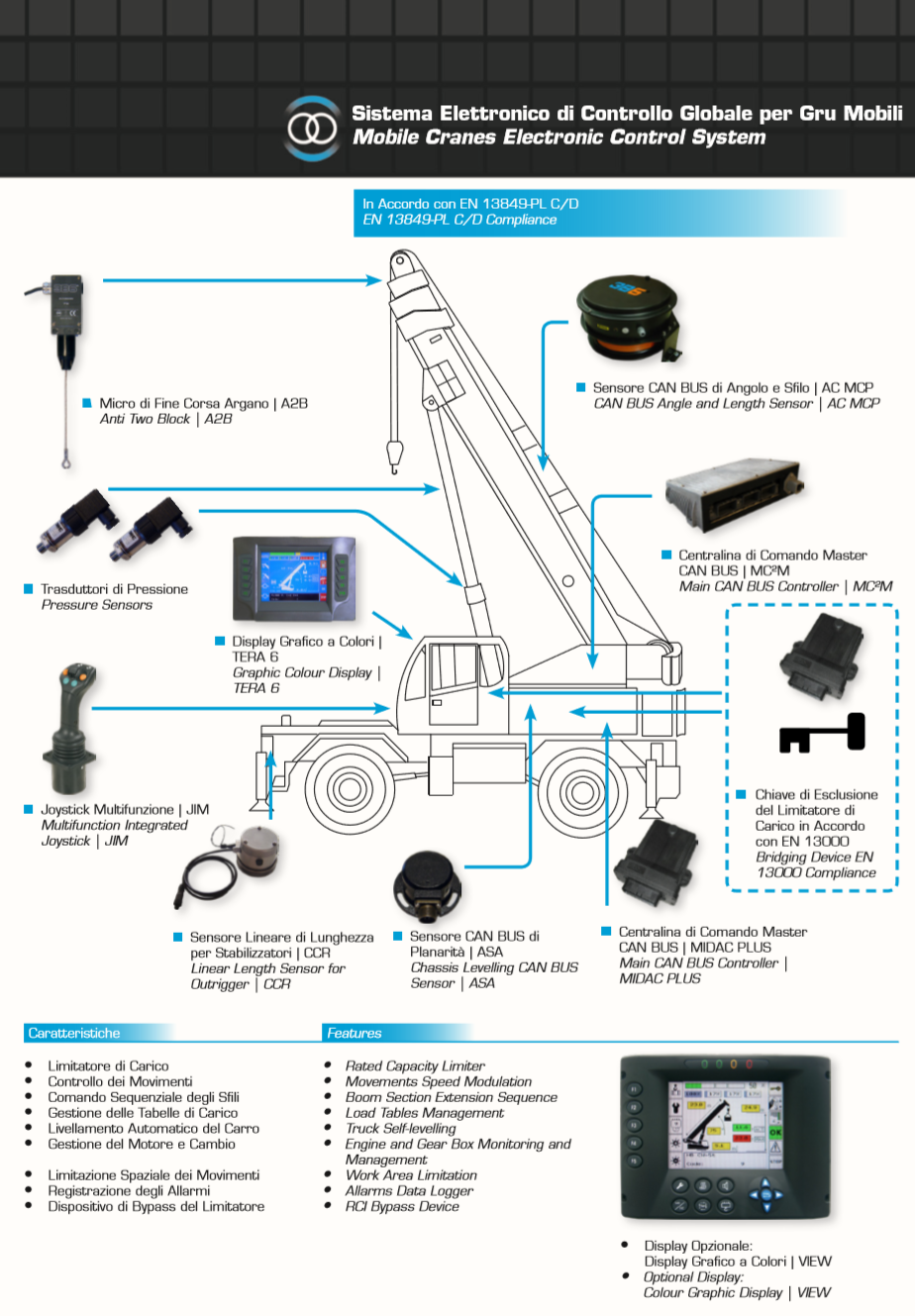

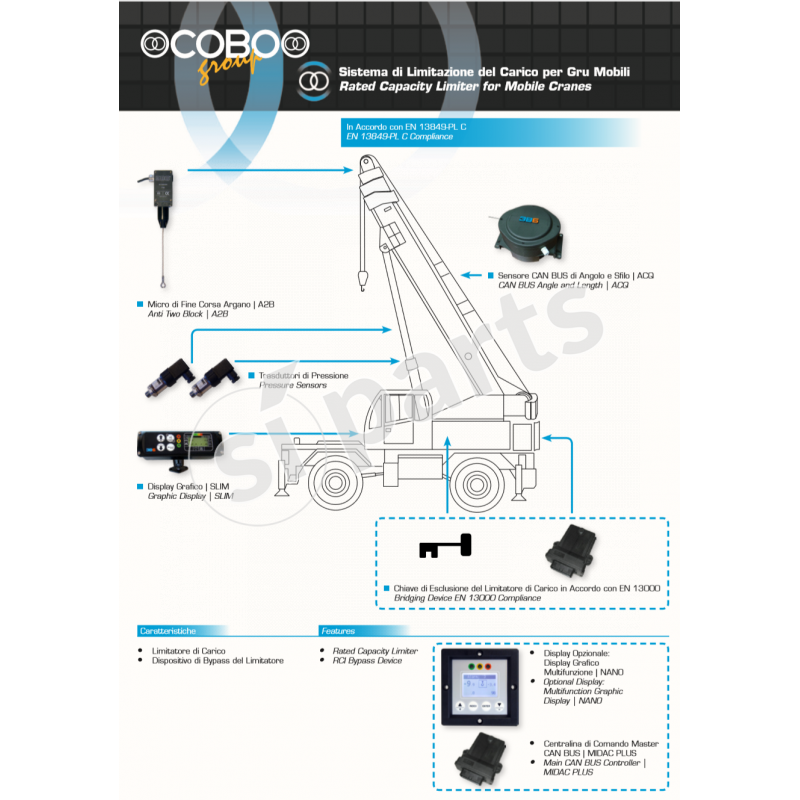

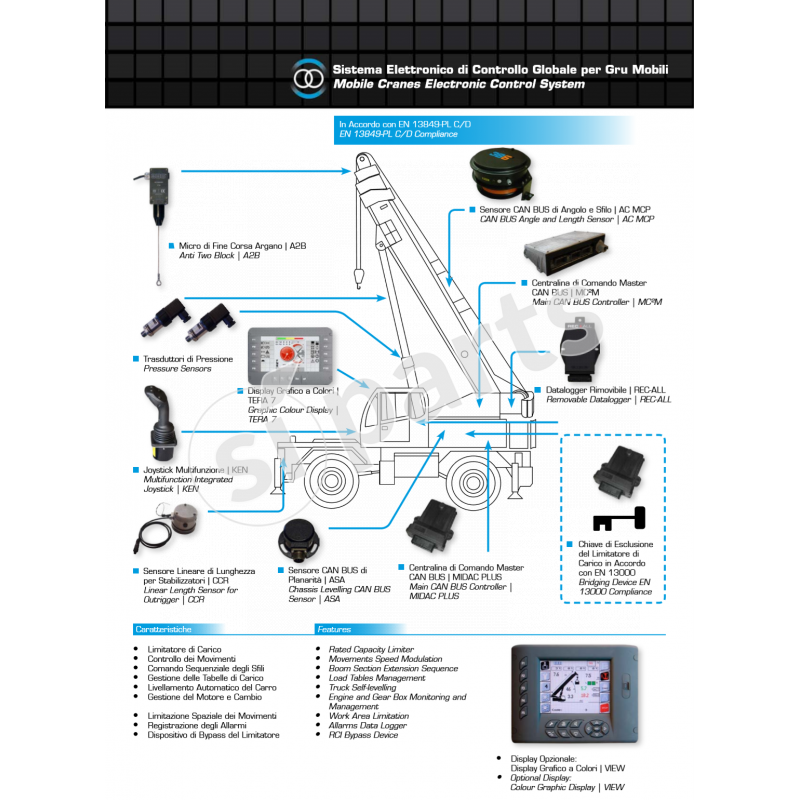

CABLE REEL ACQ 1P

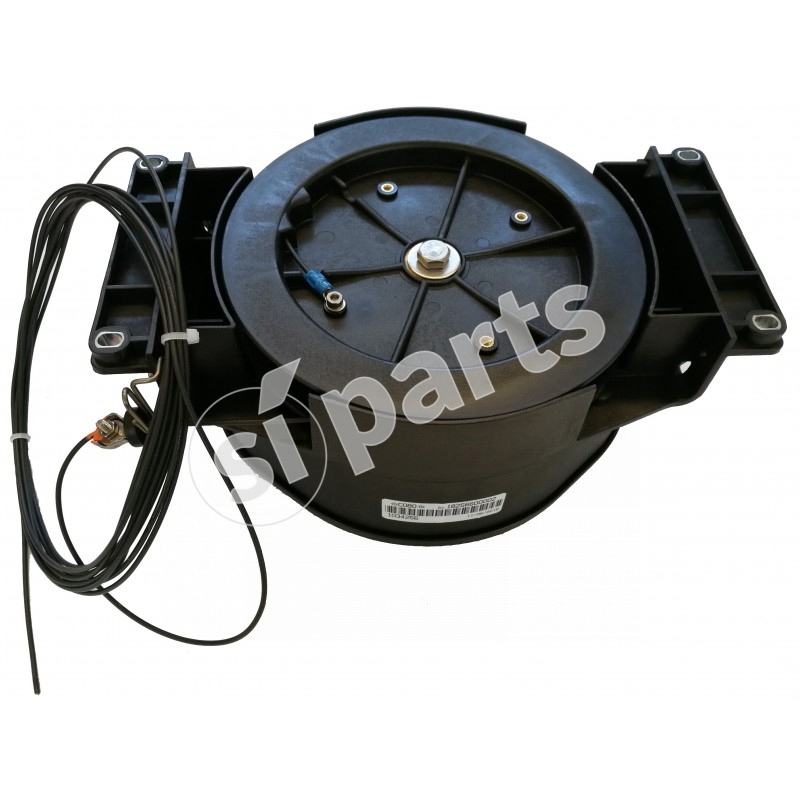

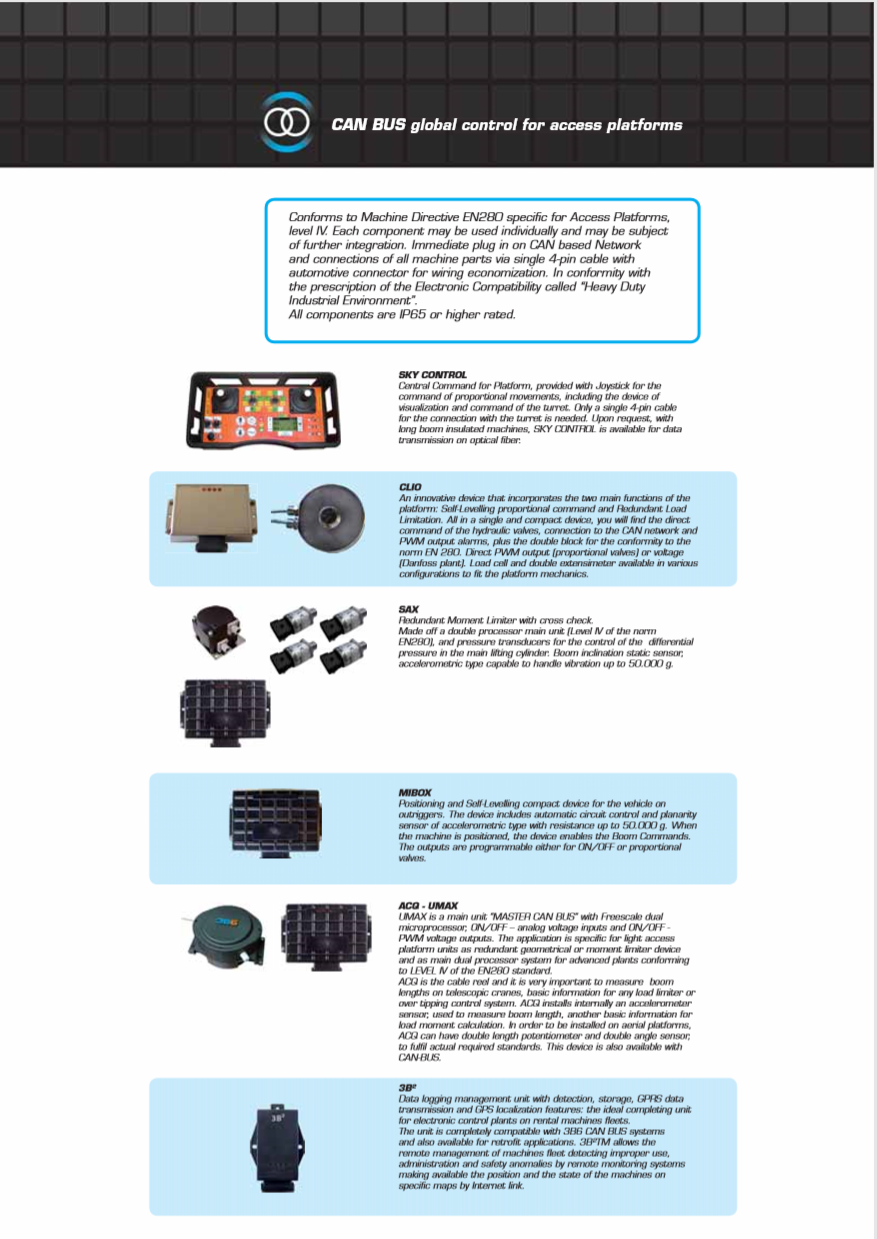

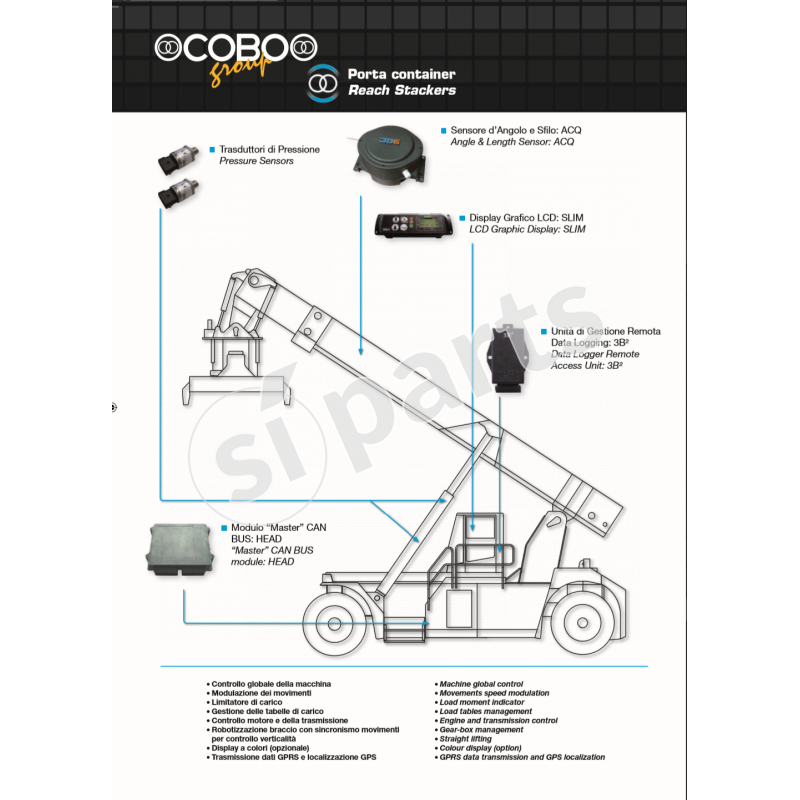

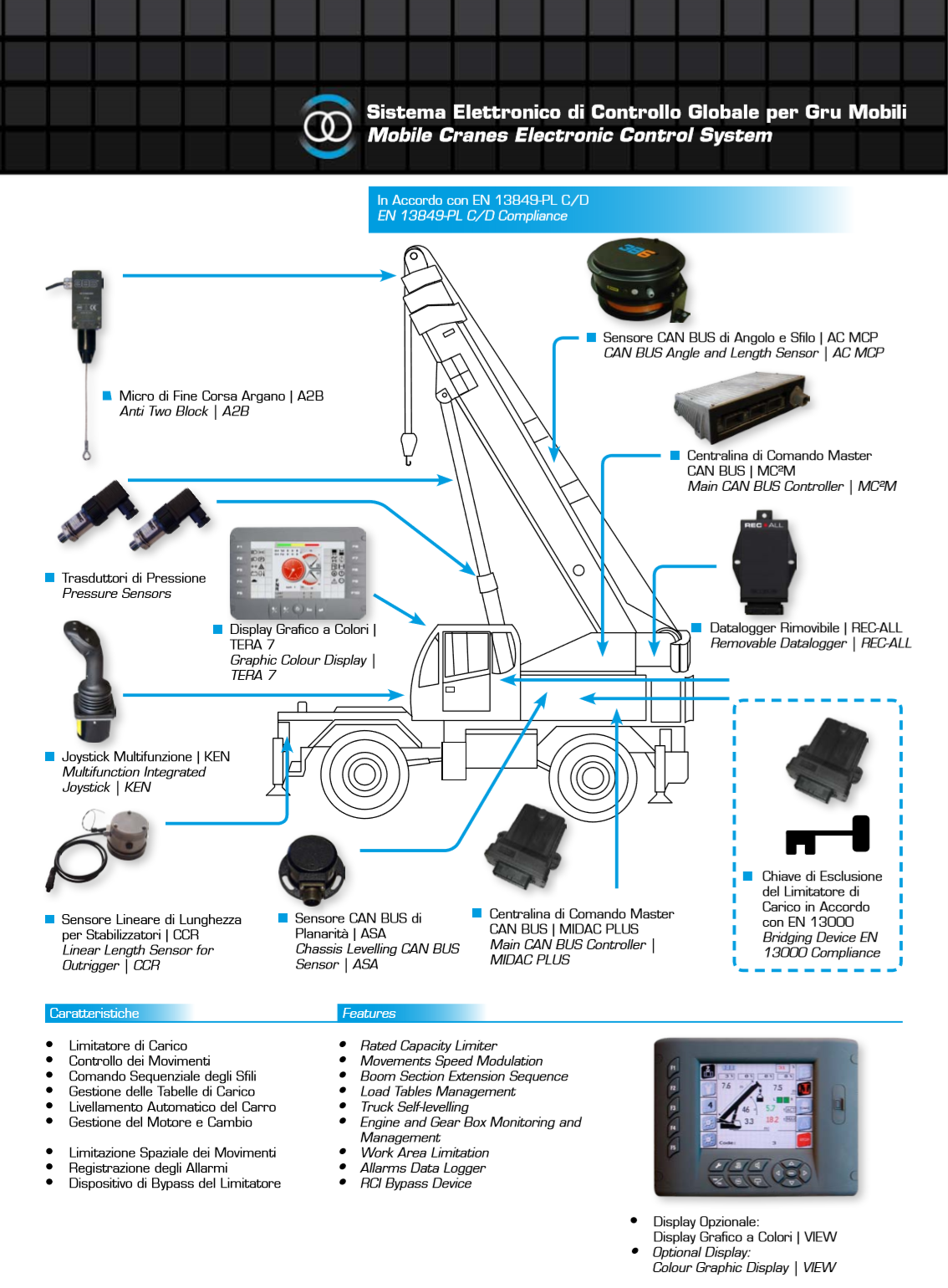

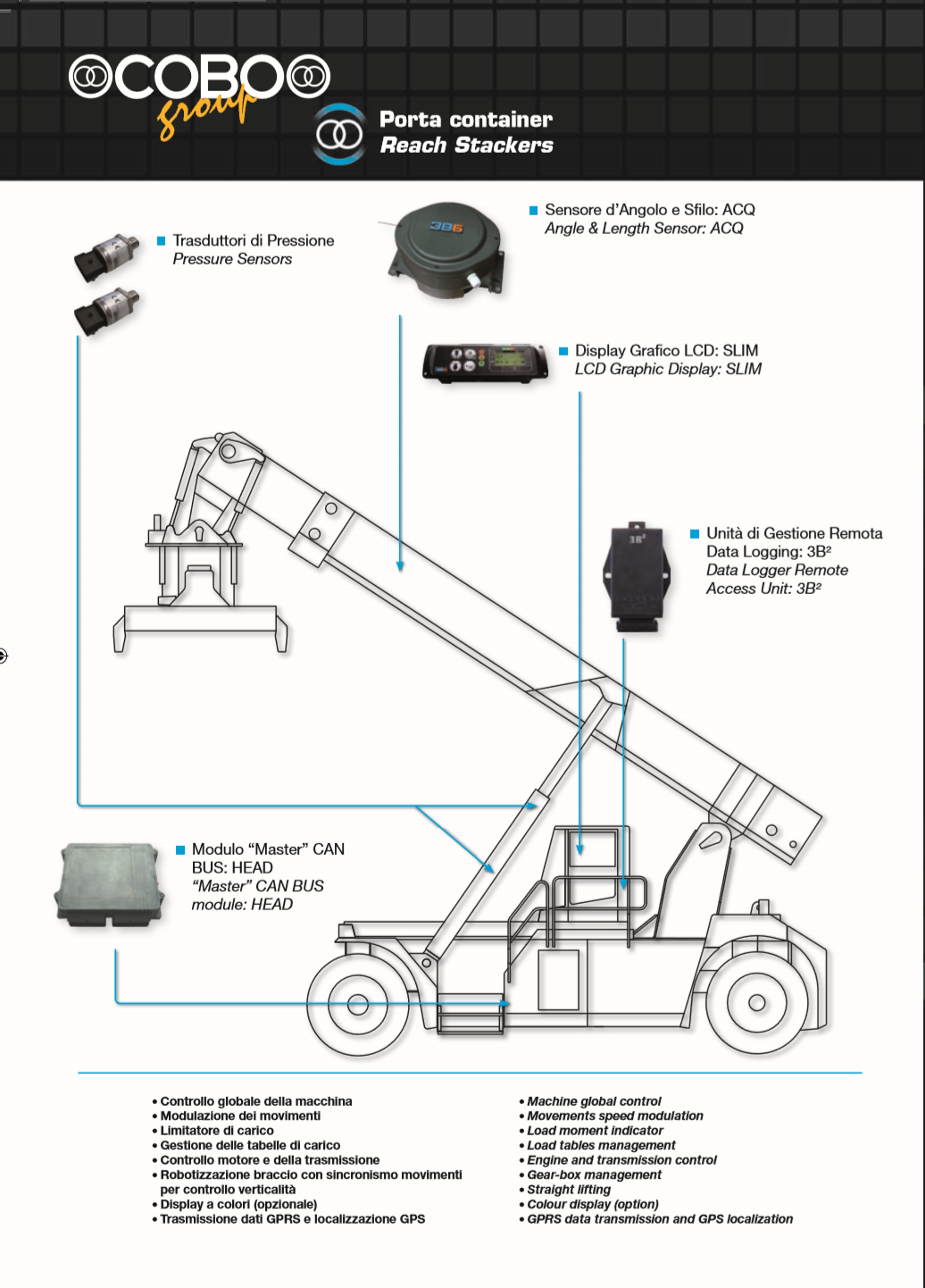

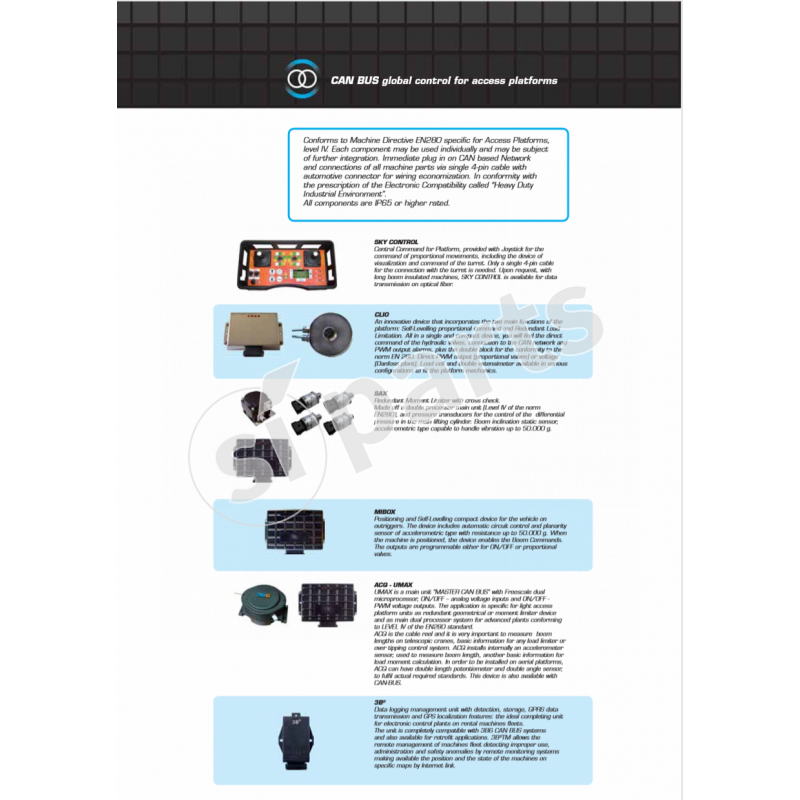

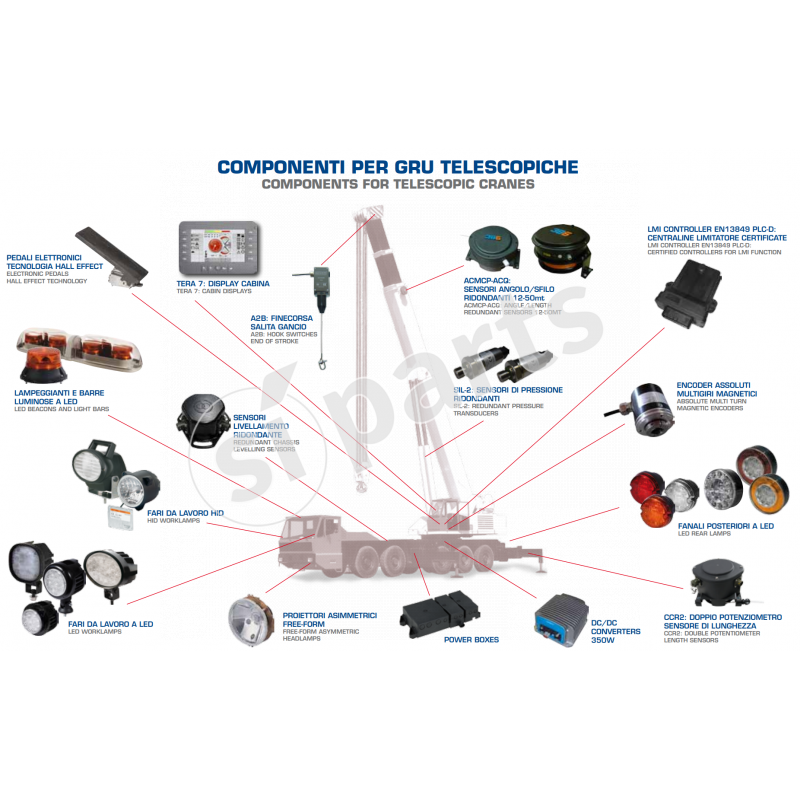

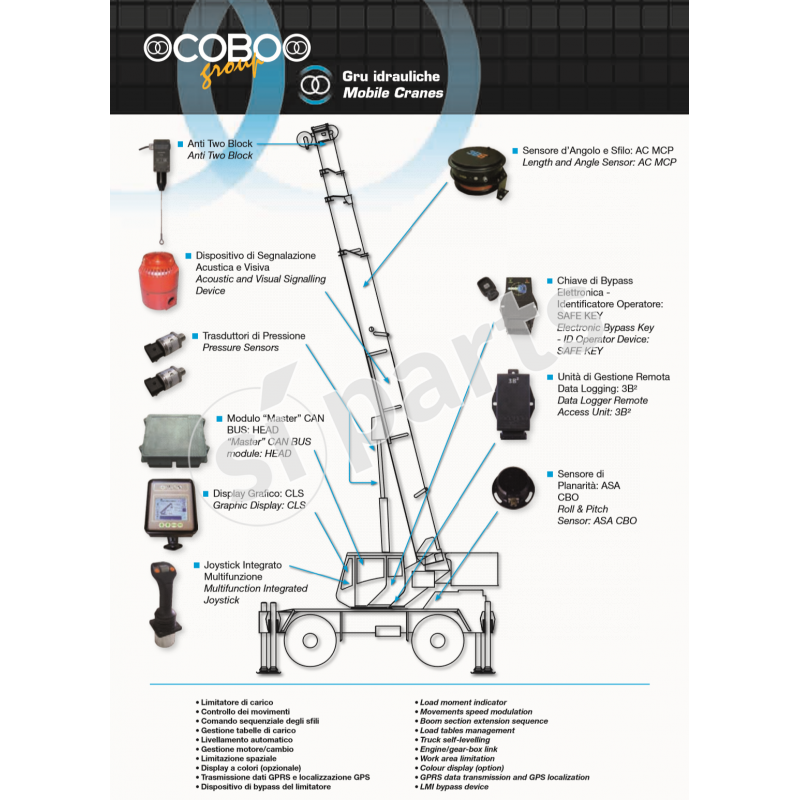

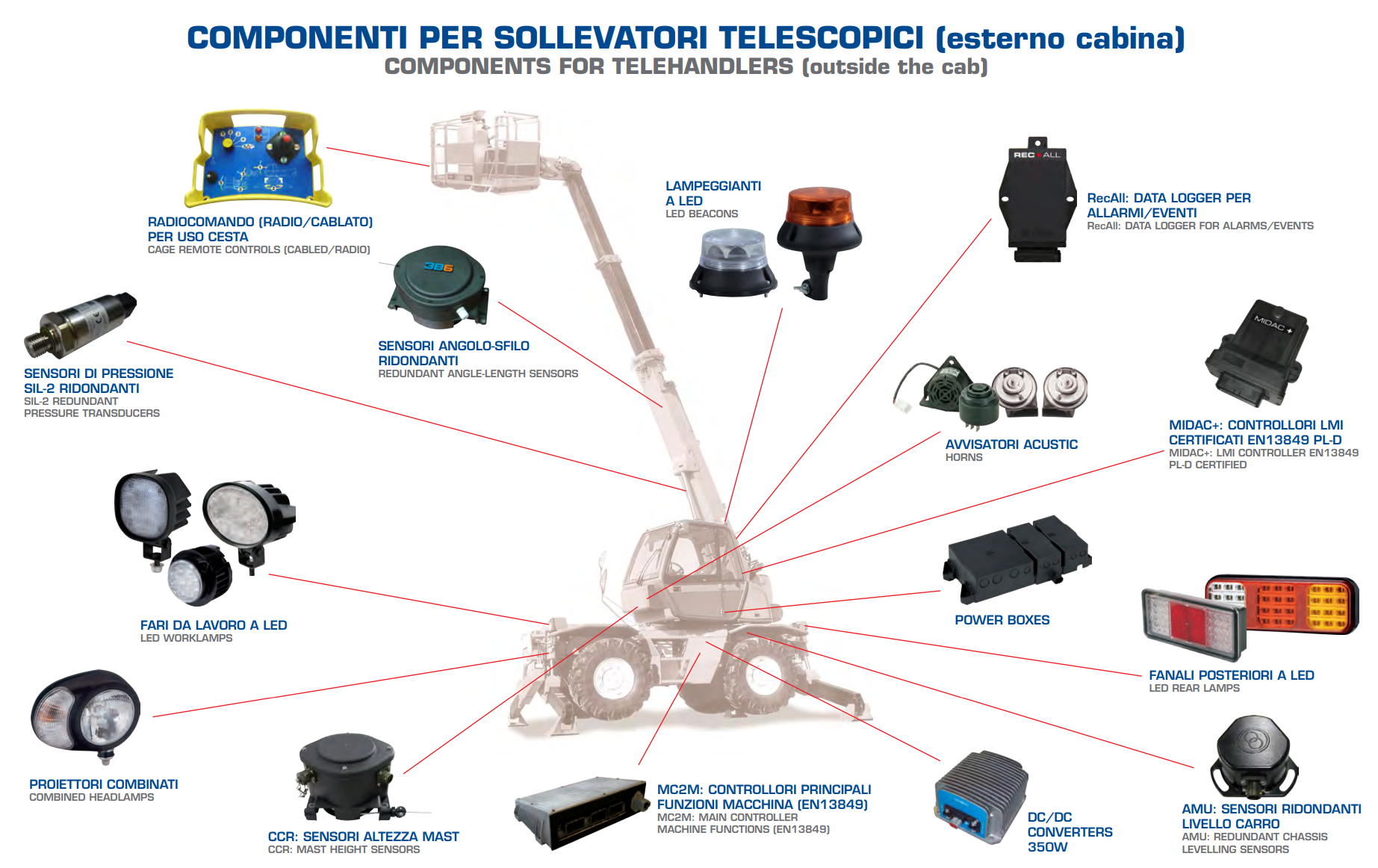

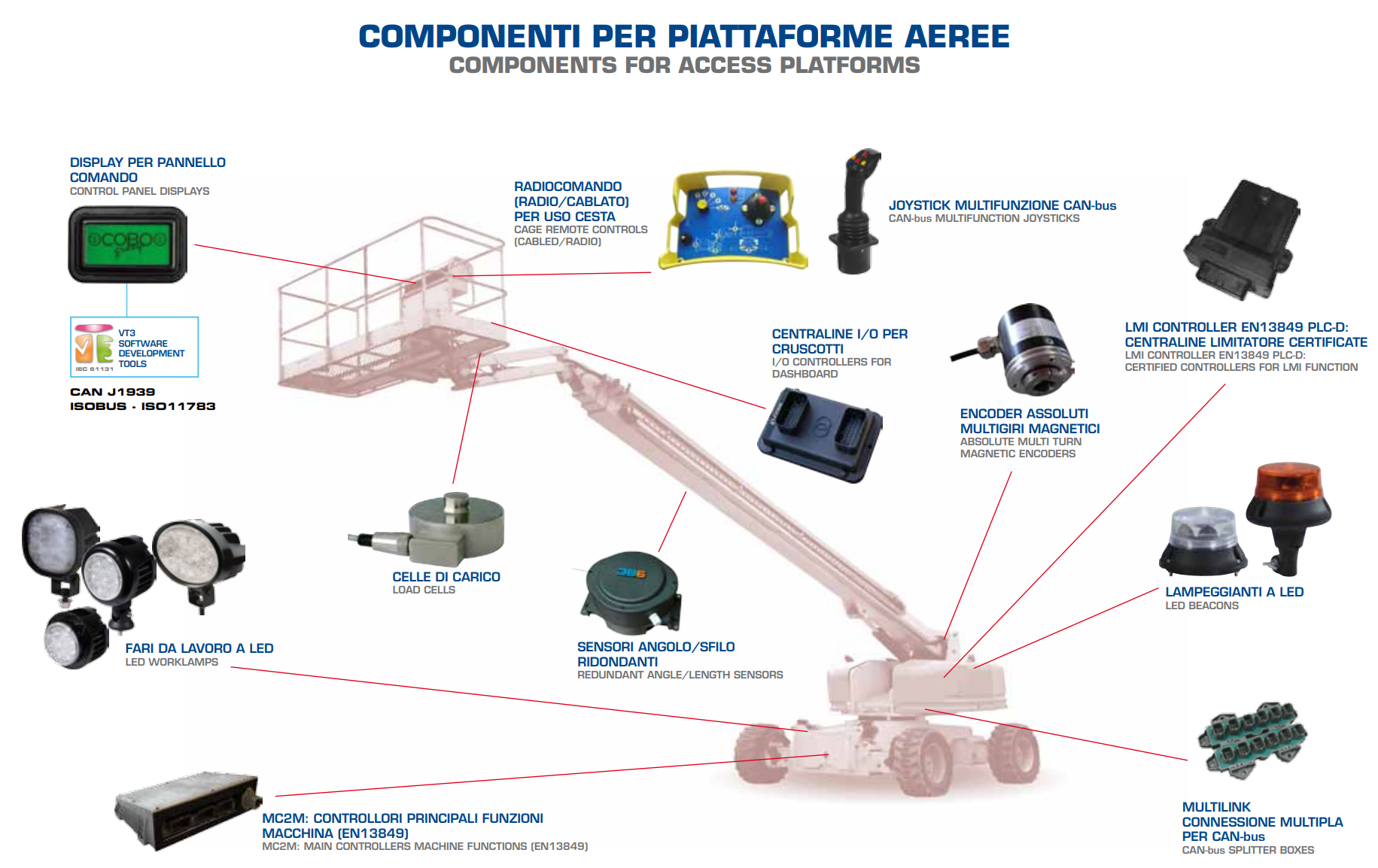

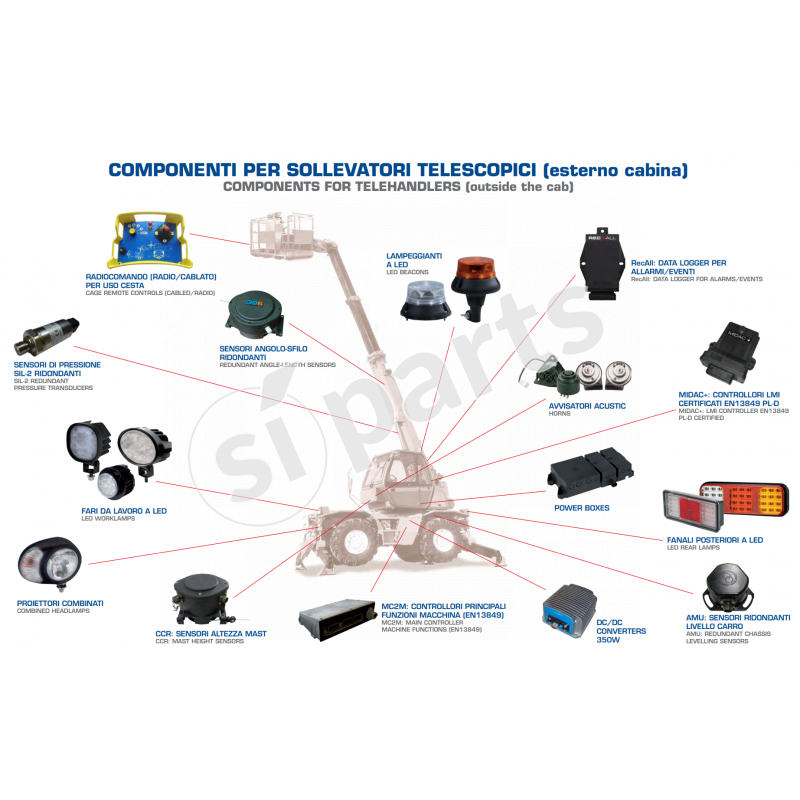

Cable reel ACQ 1P is a system for measuring extensions from 8 to 12 meters (ACQ) and 17 meters (ACR). Its mechanics is designed for heavy and repeated uses, typical of telescopic boom cranes. An integral part of the machine safety system, with its high level of MTTF, it has different internal sensor configurations for different applications. They can be equipped with a rotating collector for the transport of one or more electrical signals, ideal for the installation of limit switches in the arm tip. Typical applications: measurement of length and inclination of the boom for small cranes, first extension of large cranes or telehandlers.

CABLE REEL ACQ 1P: equipped with a single extension sensor with analogue output, for easy integration into any system. Also available with 3-way electric manifold.

Slip-ring
Available 2A gold plated slip-ring
Number of way: 2,3,6,8
Rated current: 2 A / ring
Rated voltage: 240V AC/DC
Lead Size: AWG26, color coded, FEP insulated, silver plated copper
Dielectric strength: 500V AC @ 50 Hz
Insulation resistance: 1000 MOhm @ 500V DC
Equivalent electrical noise: < 0.01 Ù
Maximum operating speed: 300 rpm
Operating temperature: -20 .. +80 °C (-4 .. +176 °F)

Electrical wire
Description: 24 AWG tinned copper wire
Wire gauge: 0.24 mm2
Insulating material: ETFE
Color: Red, Green, Grey
Shield: tinned copper braid, (shielding 85 - 90%)
Jacket material: ETFE
External nominal diameter: 2.85 ±0.12 mm
Electrical resistance @ 20 °C (68 °F): < 88.5 Ohm / Km
Test voltage: 1500 V
Nominal voltage: 600 V
Minimum bending radius: 30 mm
Operating temperature: - 40 .. +120 °C (- 40 .. +248°F)
Minimum breaking strength: 10 Kg
