Description Compact controller equipped with a high number of inputs/outputs, also in low side version, used in dashboards or in generic automotive applications. Equipped with sealed connectors suitable for outdoor applications.
APPLICATIONS
- Dashboard signals collector and management via CAN-bus network
- Generic slave module for I/O signal management in any machine
APPLICATIONS
- Dashboard signals collector and management via CAN-bus network
- Generic slave module for I/O signal management in any machine

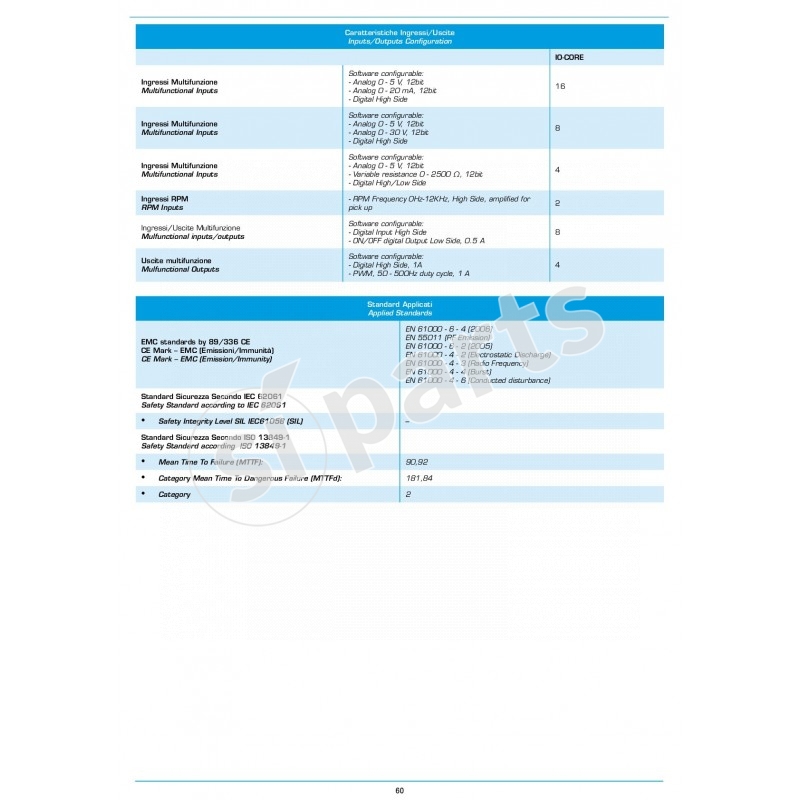

| INPUTSOUTPUTS | CONFIGURATION | NR. I/O |
|---|---|---|
| MULTIFUNCTIONAL INPUTS | Software configurable: | 12 |
| - Analog 0 - 5,5 V, 12 bit | ||
| - Analog 0 - 20 mA, 12 bit | ||
| - Digital High Side | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 12 |
| - Analog 0 - 5,5 V, 12 bit | ||
| - Analog 0 - 30 V, 12 bit | ||
| - Digital High Side | ||
| MULTIFUNCTIONAL INPUTS | Software configurable: | 4 |
| - Analog 0 - 5,5 V, 12 bit | ||
| - Variable resistance 0 - 2500 Ohm, 12 bit | ||
| - Digital High/Low Side | ||
| RPM INPUTS | - RPM Frequency 1 Hz-12 KHz, High Side, amplified for PICK UP | 2 |
| MULTIFUNCTIONAL INPUTS/OUTPUTS | Software configurable: | 8 |
| - Digital Input High Side | ||
| - ON/OFF digital Output Low Side, 1 A | ||
| MULTIFUNCTIONAL OUTPUTS | Software configurable: | 4 |
| - Digital High Side, 2 A | ||
| - PWM, 50 - 500 Hz duty cycle, 1 A |
MICROCONTROLLER CPU
2 x Freescale. 8 bit, clock 20 MHz
RAM MEMORY
4 kB for each microcontroller
FLASH MEMORY
60kB for each microcontroller
REAL TIME CLOCK RTC
NO
PROGRAMMING MODE
Usable as Slave module CAN L2 /CANOpen
POWER SUPPLY VOLTAGE V
8 - 32 V full operational. suitable for machine battery direct connection
COLD RANKING
6,2 V without rest to ISO7637-2
IDLE CURRENT CONSUMPTION
50 mA @ 12V - 30 mA @ 24V
CAN BUS
1 CAN-bus. 2.0B high speed. 11 or 29 bit identifier. ISO 11898-2 compliant
STORAGE TEMPERATURE
From - 40 °C to +85 °C from - 40 °F to +185 °F
WORKING VOLTAGE
From - 40 °C to +80 °C from - 40 °F to +176 °F
SEALING IEC 529
IP65
GORETEX VALVE
NO
DIMENSIONS MM
127 x 87 x 46 mm
WEIGHT
150 g
INSTALLATION
HORIZONTAL/VERTICAL, 2 SCREWS
CONNECTOR
2 X 23 POLES AUTOMOTIVE
HOUSING
PA6 GBF30
EMC STANDARDS BY 89/336 CE CE MARK-EMC EMISSIONI/IMMUNITÀ
EN 61000 - 6 - 4 2006
EN 55011 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
EN 55011 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
SAFETY STANDARD ACCORDING ISO 13849-1 MEAN TIME TO FAILURE MTTF
90,92
SAFETY STANDARD ACCORDING ISO 13849-1CATEGORY
2
SAFETY STANDARD ACCORDING ISO 13849-1 MEAN TIME TO DANGEROUS FAILURE MTTFD
181,84
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
