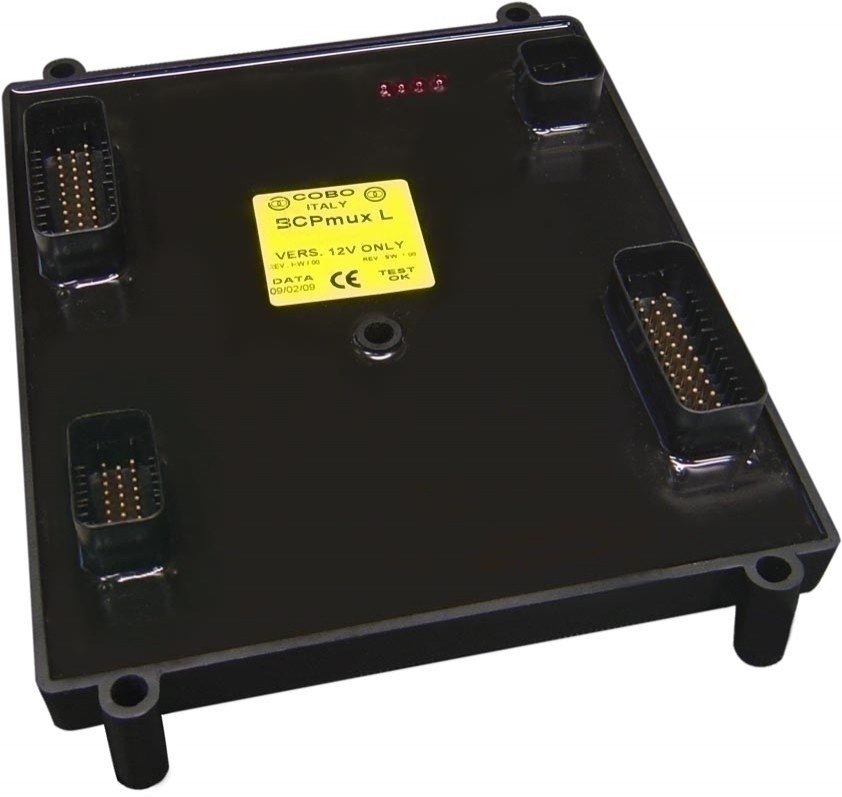

Description Power Node is a family of programmable controllers with high power outputs for applications on mobile machines.
The outputs (up to 35A) allow direct actuators activation without relays or fuses, relays or fuses, simplifying a lot machine cabling.
Inputs and outputs are protected with self-diagnosis, wide configurability and possibility also to activate electric motors.
Programmable in C language or IEC 61131, using VT3 Software Development Tool.
AVAILABLE VERSIONS
- Hi Power Node
Controller with high-power outputs for cabin applications or machine system.
- Power Node
Controller with many high-power inputs and outputs.
APPLICATIONS
- Fans and compressors control for air conditioning
- Wipers control and diagnostics
- Bilge pumps activation
- ON/OFF electric motors activation
The outputs (up to 35A) allow direct actuators activation without relays or fuses, relays or fuses, simplifying a lot machine cabling.
Inputs and outputs are protected with self-diagnosis, wide configurability and possibility also to activate electric motors.
Programmable in C language or IEC 61131, using VT3 Software Development Tool.
AVAILABLE VERSIONS
- Hi Power Node
Controller with high-power outputs for cabin applications or machine system.
- Power Node
Controller with many high-power inputs and outputs.
APPLICATIONS
- Fans and compressors control for air conditioning
- Wipers control and diagnostics
- Bilge pumps activation
- ON/OFF electric motors activation

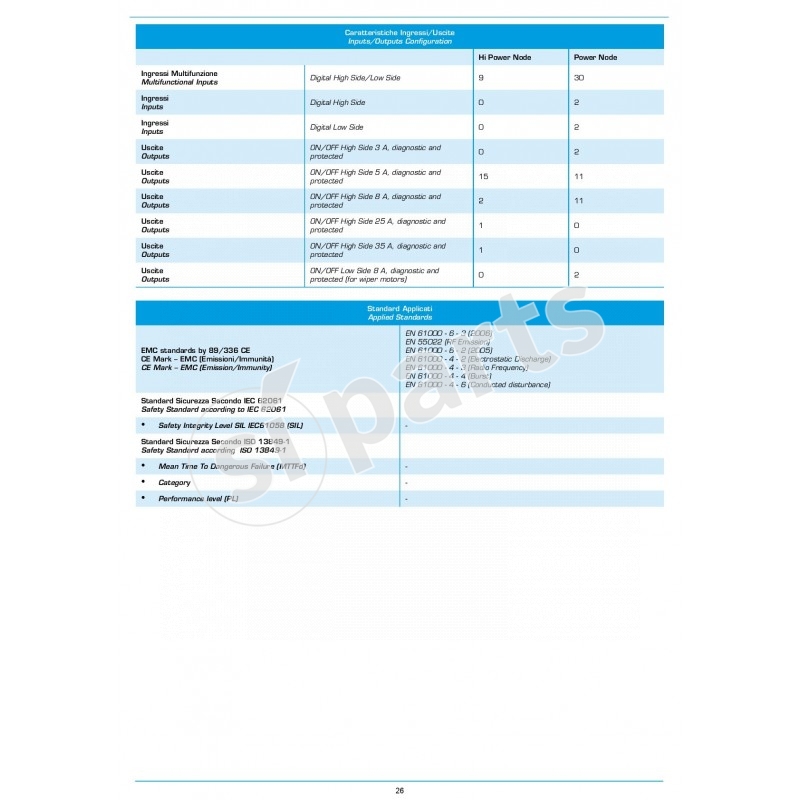

| INPUTSOUTPUTS | CONFIGURATION | NR. I/O |
|---|---|---|
| MULTIFUNCTIONAL INPUTS | Digital High Side/Low Side | 30 |
| INPUTS | Digital High Side | 2 |
| INPUTS | Digital Low Side | 2 |
| OUTPUTS | ON/OFF High Side 3 A, diagnostic and protected | 2 |
| OUTPUTS | ON/OFF High Side 5 A, diagnostic and protected | 11 |
| OUTPUTS | ON/OFF High Side 8 A, diagnostic and protected | 11 |
| OUTPUTS | ON/OFF High Side 25 A, diagnostic and protected | 0 |
| OUTPUTS | ON/OFF High Side 35 A, diagnostic and protected | 0 |
| OUTPUTS | ON/OFF Low Side 8 A, diagnostic and protected (for | 2 |

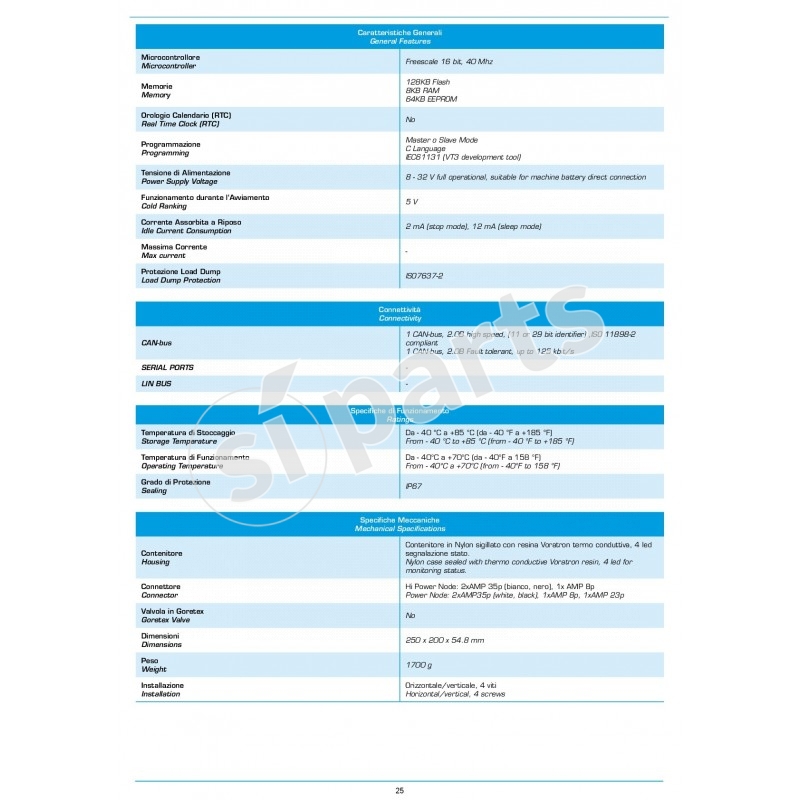

MICROCONTROLLER CPU
Freescale 16 bit, 40 Mhz
FLASH MEMORY
256 KB
RAM MEMORY
12 KB
EEPROM MEMORY
64 KB
REAL TIME CLOCK RTC
NO
PROGRAMMING MODE
Master o Slave Mode
PROGRAMMING LANGUAGE
C Language
SOFTWARE
IEC61131 VT3 development tool
POWER SUPPLY VOLTAGE V
8 - 32V full operational, suitable for machine battery direct connection
COLD RANKING
5V
IDLE CURRENT CONSUMPTION
2 mA stop mode, 12 mA sleep mode
LOAD DUMP PROTECTION
ISO7637-2
CAN BUS
1 CAN-bus, 2.0B high speed, 11 or 29 bit identifier ,ISO 11898-2 ompliant
1 CAN-bus, 2.0B Fault tolerant, up to 125 kbit/s
1 CAN-bus, 2.0B Fault tolerant, up to 125 kbit/s
STORAGE TEMPERATURE
From - 40 °C to +85 °C from - 40 °F to +185 °F
OPERATING TEMPERATURE
From - 40°C a +70°C from - 40°F to 158 °F
SEALING IEC 529
IP67
HOUSING
NYLON CASE SEALED WITH THERMO CONDUCTIVE VORATRON RESIN, 4 LED FOR MONITORING STATUS.
CONNECTOR
2 X AMP 35P WHITE, BLACK, 1 X AMP 8P, 1 X AMP 23P
GORETEX VALVE
NO
DIMENSIONS MM
250 x 200 x 54.8 mm
WEIGHT
1700 g
INSTALLATION
HORIZONTAL/VERTICAL, 4 SCREWS
EMC STANDARDS BY 89/336 CE CE MARK-EMC EMISSIONI/IMMUNITÀ
EN 61000 - 6 - 3 2006
EN 55022 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
EN 55022 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
