CIAM PRODUCTS- Original product

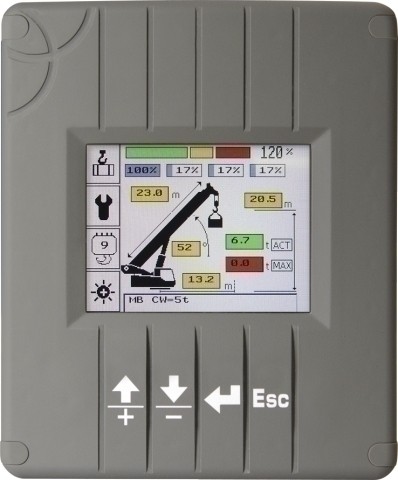

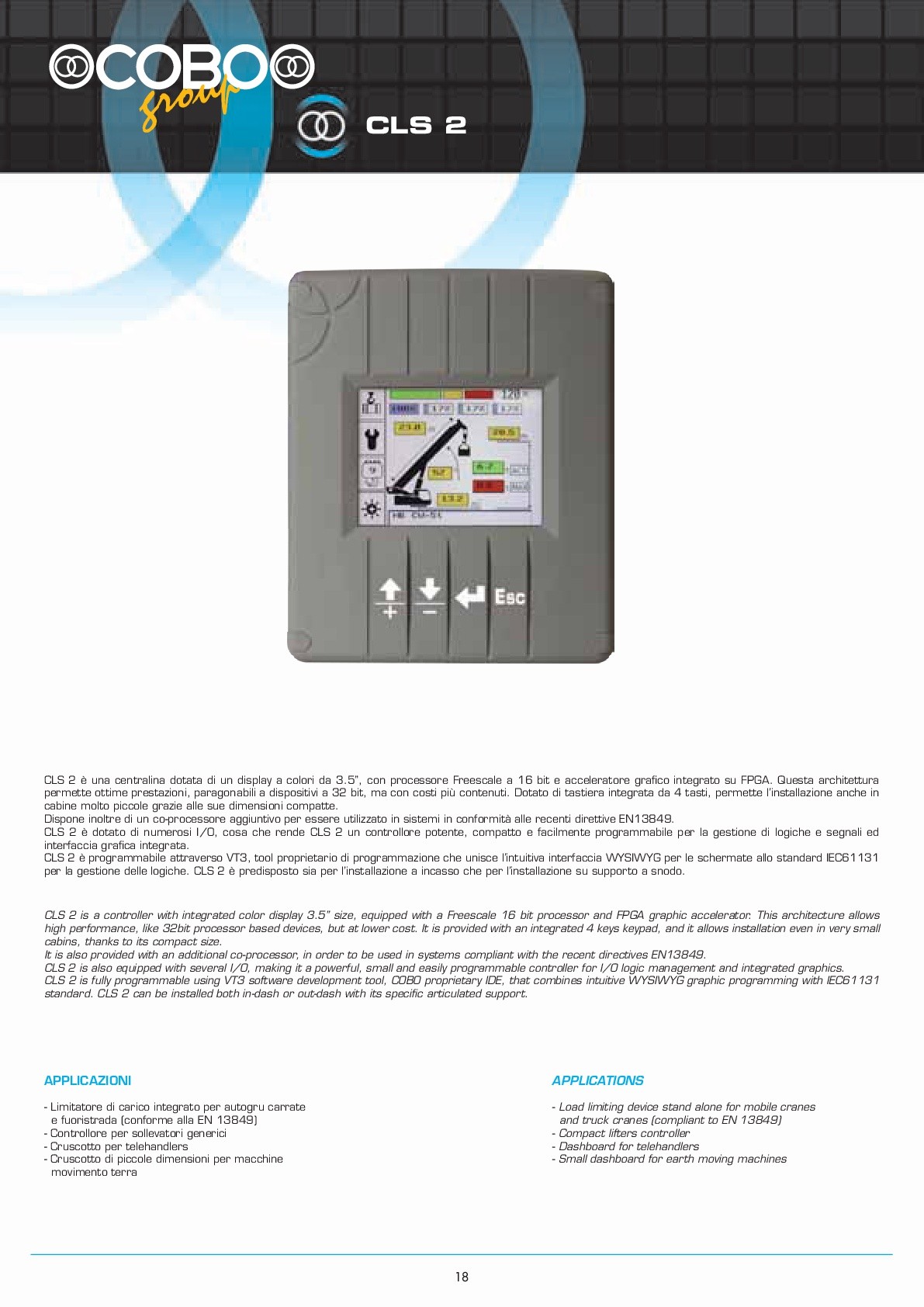

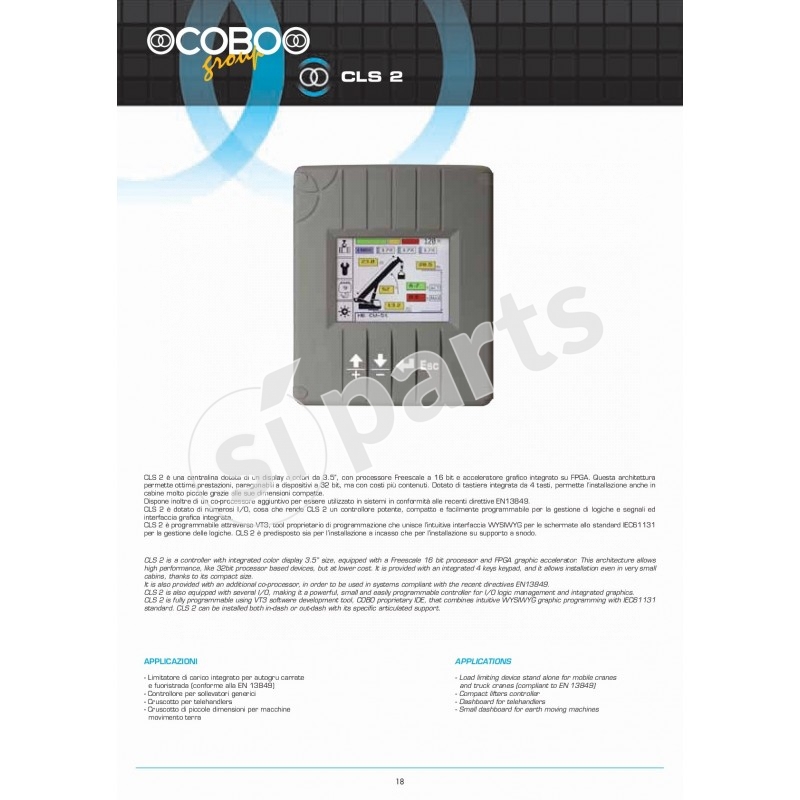

description cls 2 is a controller with integrated color display 3.5" size, equipped with a freescale 16 bit processor and fpga graphic accelerator. this architecture allows high performance, like 32bit processor based devices, but at lower cost. it is provided with an integrated 4 keys keypad, and it allows installation even in very small cabins, thanks to its compact size.
it is also provided with an additional co-processor, in order to be used in systems compliant with the recent directives en13849.
cls 2 is also equipped with several i/o, making it a powerful, small and easily programmable controller for i/o logic management and integrated graphics.
cls 2 is fully programmable using vt3 software development tool, cobo proprietary ide, that combines intuitive wysiwyg graphic programming with iec61131 standard. cls 2 can be installed both in-dash or out-dash with its specific articulated support.
applications

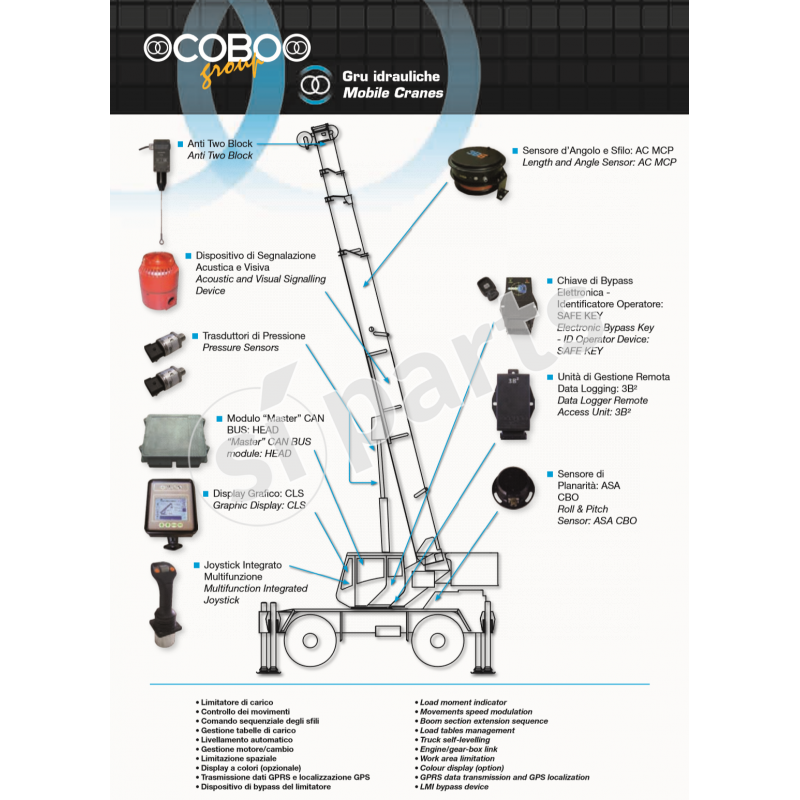

- load limiting device stand alone for mobile cranes and truck cranes (compliant to en 13849)
- compact lifters controller

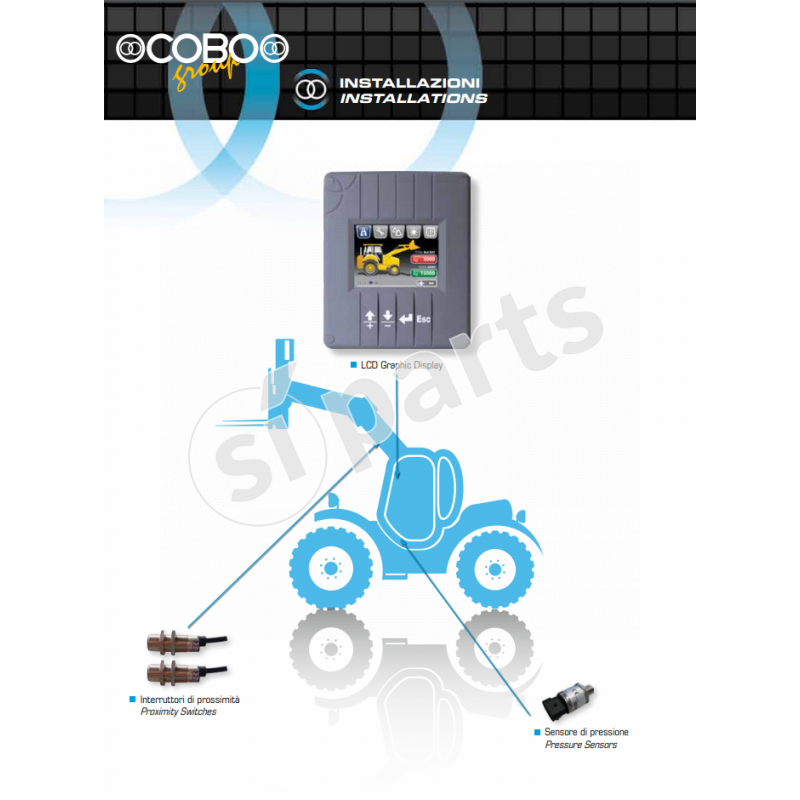

- dashboard for telehandlers

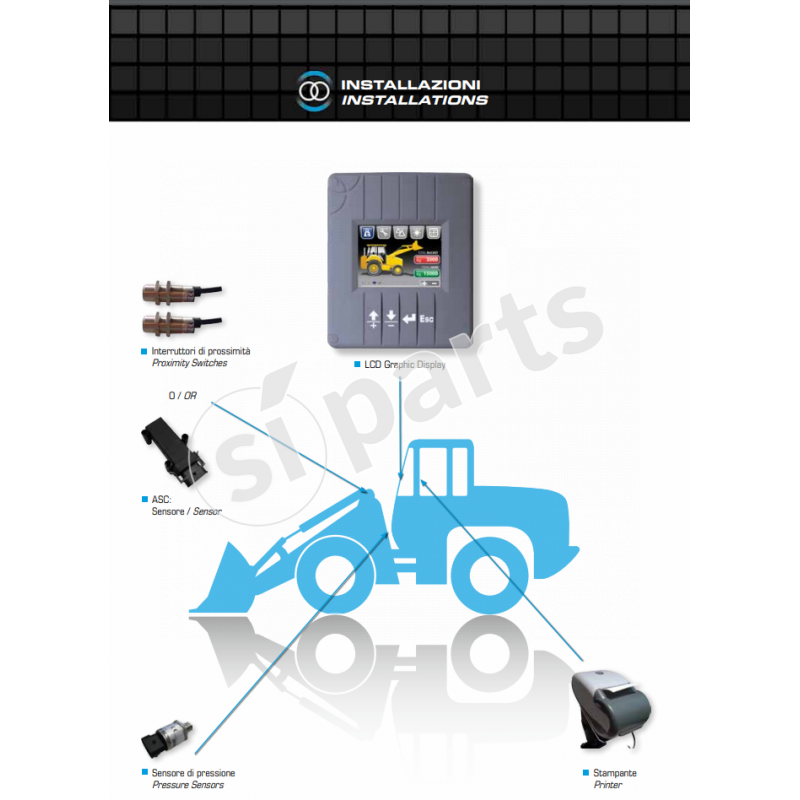

- small dashboard for earth moving machines
it is also provided with an additional co-processor, in order to be used in systems compliant with the recent directives en13849.
cls 2 is also equipped with several i/o, making it a powerful, small and easily programmable controller for i/o logic management and integrated graphics.
cls 2 is fully programmable using vt3 software development tool, cobo proprietary ide, that combines intuitive wysiwyg graphic programming with iec61131 standard. cls 2 can be installed both in-dash or out-dash with its specific articulated support.
applications
- load limiting device stand alone for mobile cranes and truck cranes (compliant to en 13849)
- compact lifters controller
- dashboard for telehandlers
- small dashboard for earth moving machines

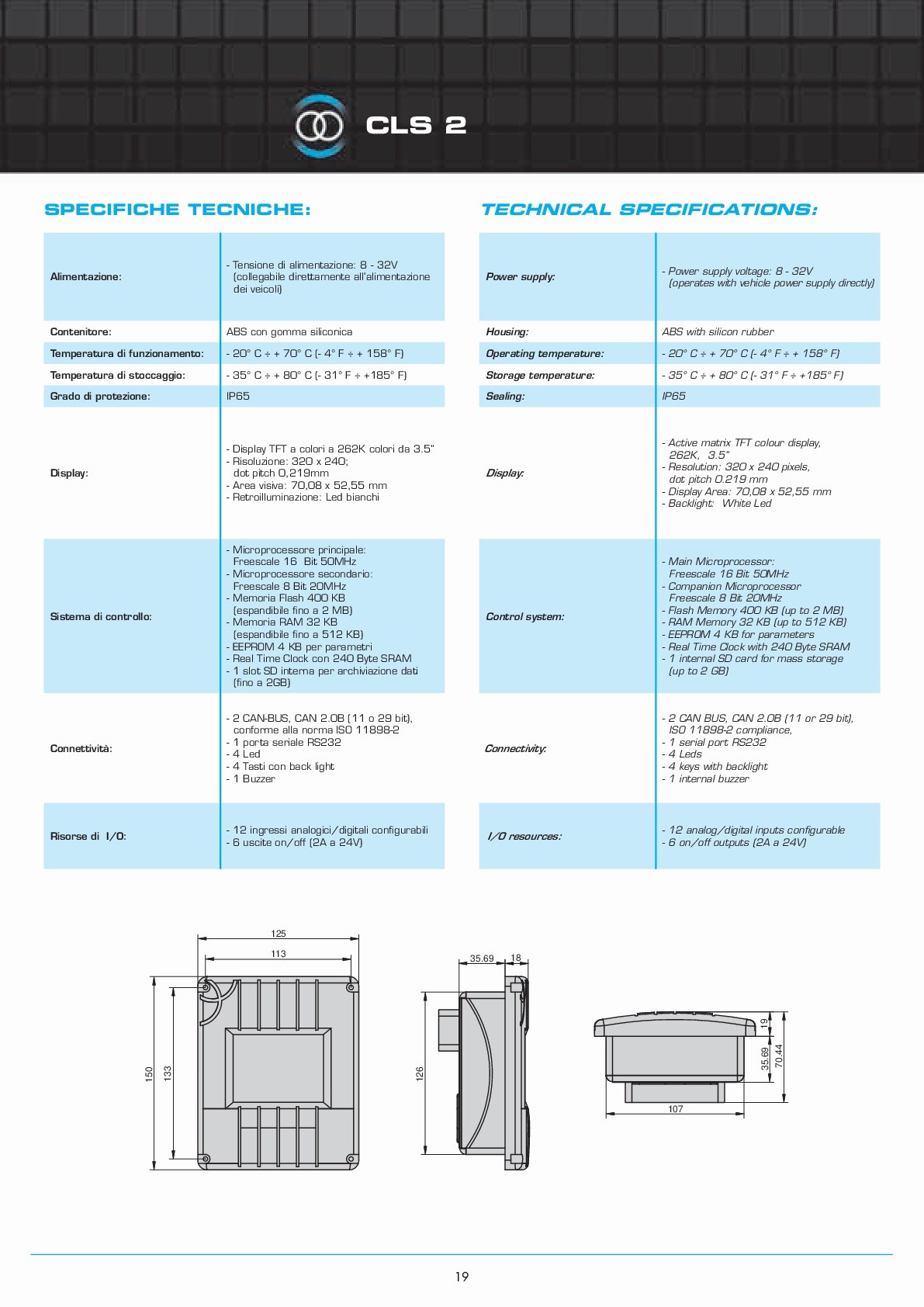

power supply voltage v
8 - 32v
housing
abs with silicon rubber
operating temperature
- 20° c ÷ + 70° c - 4° f ÷ + 158° f
- 35° c ÷ + 80° c - 31° f ÷ +176° f
- 35° c ÷ + 80° c - 31° f ÷ +176° f
sealing iec 529
ip65
tft display
active matrix tft colour display, 262k, 3.5
- risoluzione: 320 x 240; dot pitch 0,219mm
- display area: 70,08 x 52,55 mm
- backlight: white leds.
- risoluzione: 320 x 240; dot pitch 0,219mm
- display area: 70,08 x 52,55 mm
- backlight: white leds.
control system
- main microprocessor: freescale 16 bit 50mhz
- companion microprocessor freescale 8 bit 20mhz
- flash memory 256 kb
- ram memory 16 kb
- eeprom 4 kb for parameters
- real time clock with 240 byte sram
- 1 internal sd card for mass storage up to 2 gb
- companion microprocessor freescale 8 bit 20mhz
- flash memory 256 kb
- ram memory 16 kb
- eeprom 4 kb for parameters
- real time clock with 240 byte sram
- 1 internal sd card for mass storage up to 2 gb
connectivity
- 2 can bus, can 2.0b 11 or 29 bit, iso 11898-2 compliance,
- 1 serial port rs232
- 4 leds
- 4 keys with backlight
- 1 internal buzzer
- 1 serial port rs232
- 4 leds
- 4 keys with backlight
- 1 internal buzzer
i/o resource
- 12 analog/digital inputs configurable
- 6 on/off outputs 2a a 24v
- 6 on/off outputs 2a a 24v
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
cls.2
Code: cls.2
CONTACT US FOR MORE INFORMATION
