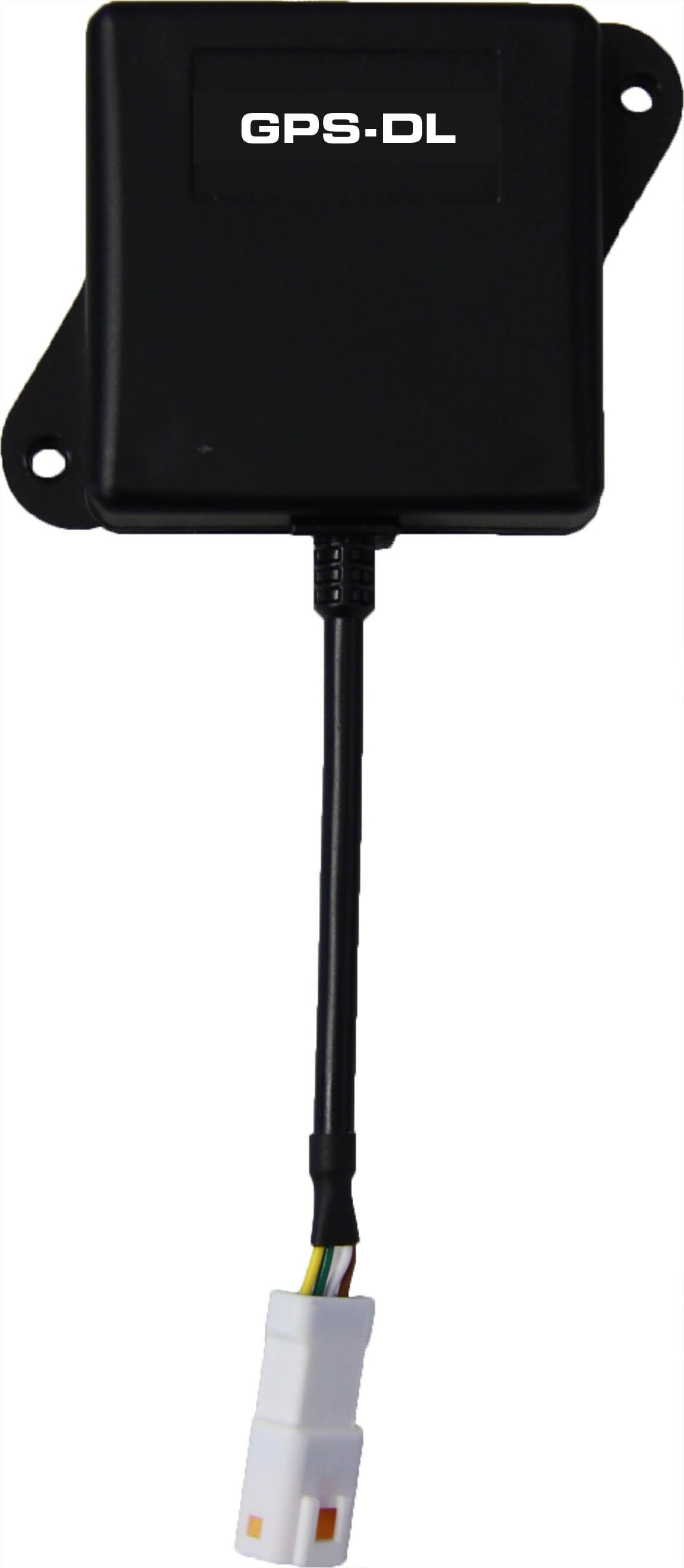

GPS-CAN: BLACK BOX AND DATA LOGGER

COBO (Original product)
1035775

Code: 46.50.5900A0.01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
MICROCONTROLLER CPU
1 Freescale, 16bit
RAM MEMORY
4KB
FLASH MEMORY
48KB
REAL TIME CLOCK RTC
NO
PROGRAMMING
NO PROGRAMMING
POWER SUPPLY VOLTAGE V
8 - 30 V
IDLE CURRENT CONSUMPTION
50 mA
LOAD DUMP PROTECTION
NO
CAN BUS
1 CAN-bus, 2.0B high speed, 11 or 29 bit identifier ,ISO 11898-2 compliant
SERIAL PORTS
NO
STORAGE TEMPERATURE
From - 40 °C to +85 °C from - 40 °F to +185 °F
OPERATING TEMPERATURE
From - 40 °C to +80 °C from - 40 °F to +176 °F
SEALING IEC 529
IP67
HOUSING
ABS type FLXT 2535 PA 6 - GBF30
CONNECTOR
1 x 4 way connector JST
GORETEX VALVE
NO

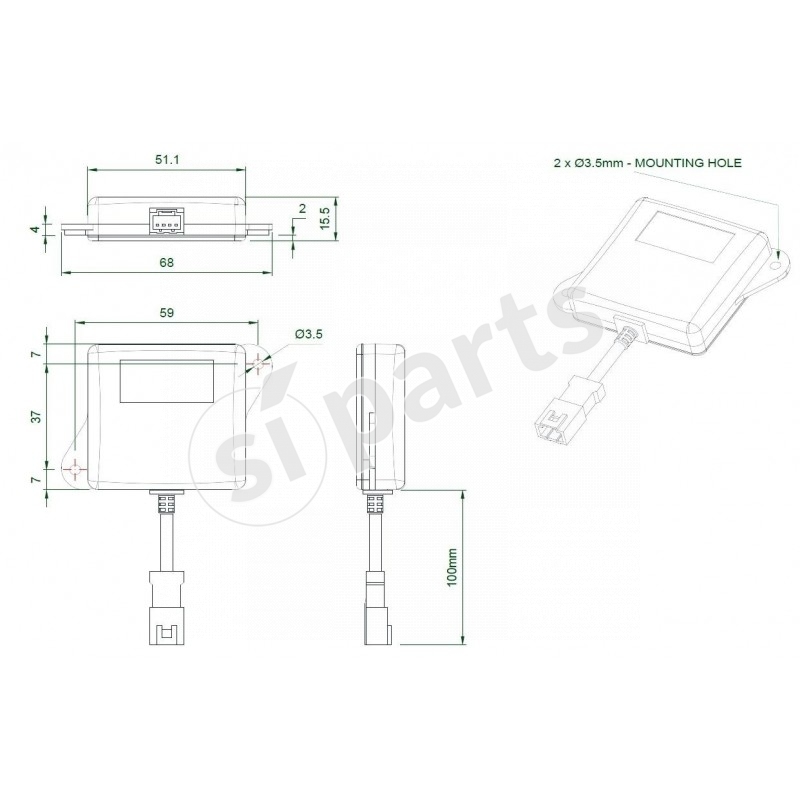

DIMENSIONS MM
161 x 68 x 15.5
WEIGHT
200 g
INSTALLATION
HORIZONTAL/VERTICAL, 2 SCREWS
EMC STANDARDS BY 89/336 CE CE MARK-EMC EMISSIONI/IMMUNITÀ
EN 61000 - 6 - 4 2006
EN 61000 - 6 - 2 2005
EEPROM MEMORY
1,5KB
MECHANICAL SHOCK ENDURANCE TO EN 60068-2-7
EN 60068 - 2 - 27
SAFETY STANDARD ACCORDING ISO 13849-1 MEAN TIME TO DANGEROUS FAILURE MTTFD
280 year
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
