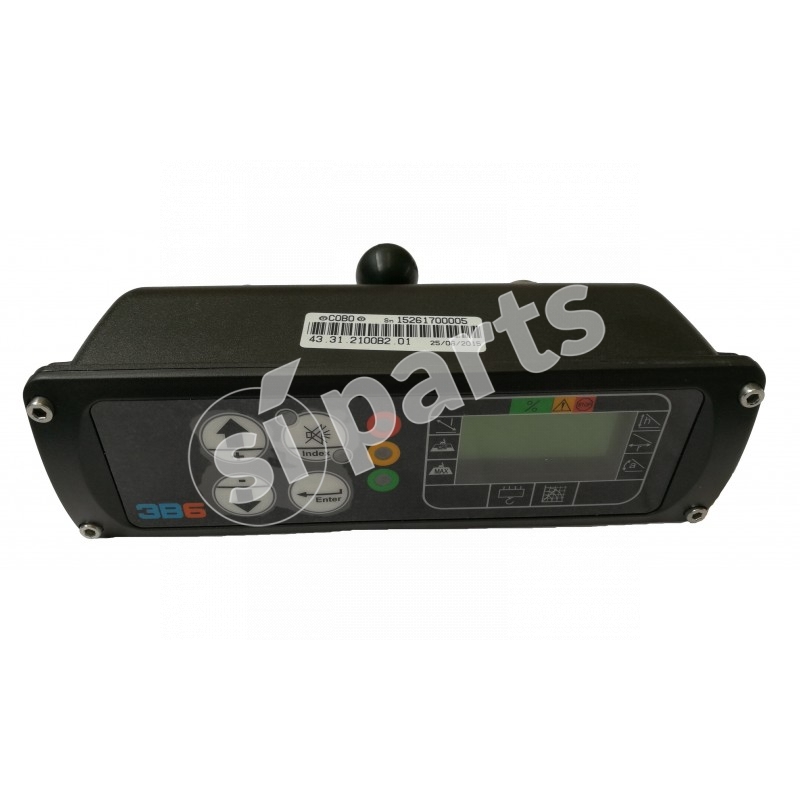

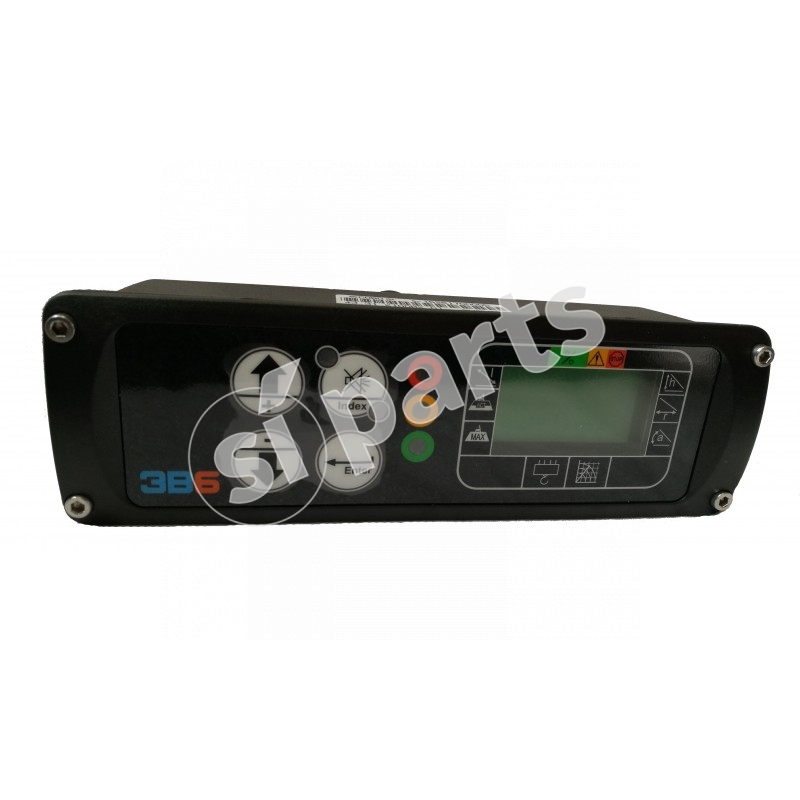

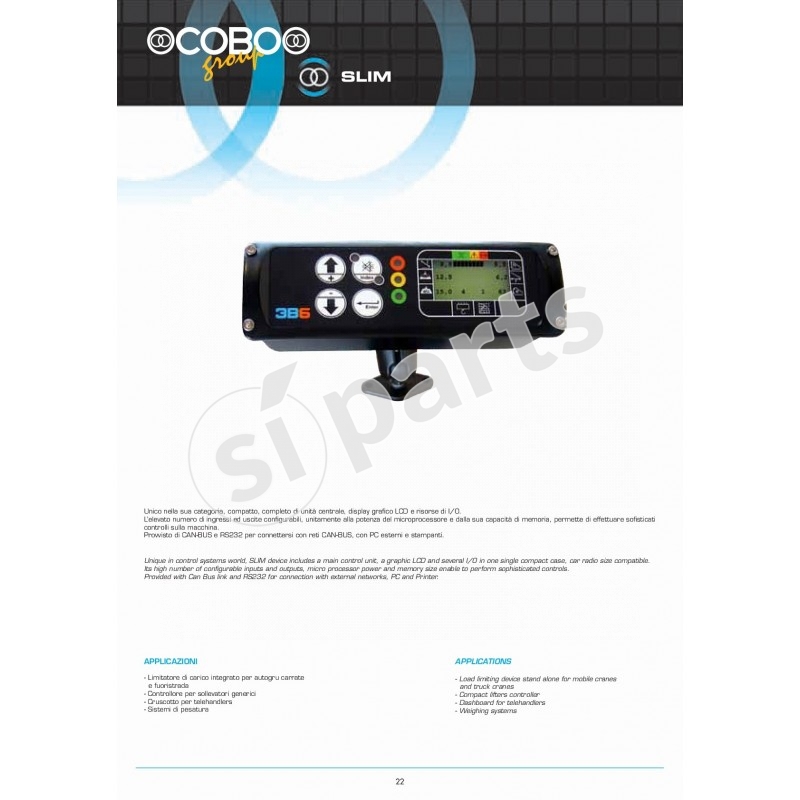

SLIM DISPLAY WITH BRACKET

3B6 (Original product)
1031906

Code: 43.31.2100B2.01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
Description Unique in control systems world, SLIM device includes a main control unit, a graphic LCD and several I/O in one single compact case, car radio size compatible.
Its high number of configurable inputs and outputs, micro processor power and memory size enable to perform sophisticated controls.
Provided with Can Bus link and RS232 for connection with external networks, PC and Printer.

APPLICATIONS
- Load limiting device stand alone for mobile cranes and truck cranes
- Compact lifters controller
- Dashboard for telehandlers
- Weighing systems
POWER SUPPLY:
9 - 30V (Operates on vehicle power supply directly)
MAXIMUM CURRENT
10 A (external fuse is required)
CONNECTOR
MOLEX minifit type 18 way and 14 way
OPERATING TEMPERATURE
- 20° C ÷ + 70° C (- 4° F ÷ + 158° F)
STORAGE TEMPERATURE
- 30° C ÷ + 85° C (- 22° F ÷ +185° F)
SEALING
IP65
DISPLAY
- B&W transfective display
- View angle: 6:00
- Backlight: white LED
- Resolution: 128 x 64 pixels
CONTROL SYSTEM
- Freescale Microprocessor 16bit, 25 MHz
- Flash memory 256 KB
- RAM memory 12 KB
- EEPROM memory 3 KB for parameters storage
CONNECTIVITY
- 2 CAN BUS, CAN 2.0B (11 or 29 bit), ISO 11898-2 compliance, speed up to 1 Mbit/s
- 1 RS232 with programmable baud rate (max. 57600 baud)
- 1 buzzer
I/O RESOURCES
- 8 analog/digital inputs configurable
- 4 analog/digital/RPM inputs configurable
- 6 on-off/PWM outputs configurable (2A at 24V)
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
