CIAM PRODUCTS- Original product

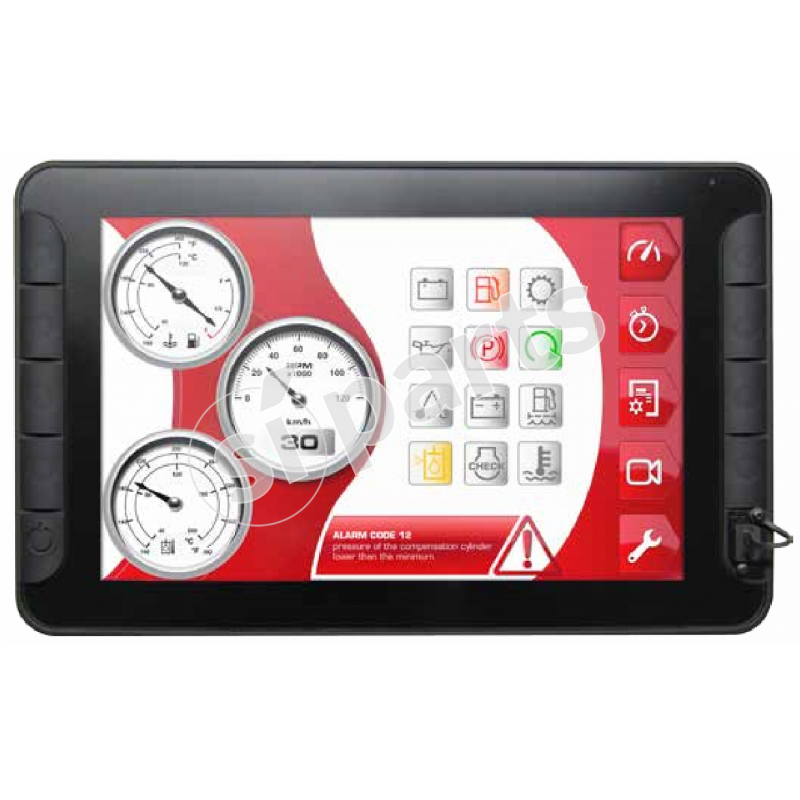

TERA 12 HE DISPLAY FULL 9 WITH KEYS HIGH INDASH
Descrizione TERA12 HE is the high end display solution for off- highway market. It runs with the latest Freescale IMX6TM processor, that joins strong multimedia capabilities and graphics management.
APPLICAZIONI
It allows 3D graphics, multitouch capacitive touchscreen, tablet-style looking, always keeping the industrial standards at base of design.
APPLICAZIONI
- High size telescopic or lattice boom cranes
- Harbor cranes
- Compactors and municipalities
- Foundation machines
- Terminal ISOBUS UT for tractors
- Fire fighting machines
POWER SUPPLY VOLTAGE
8 - 32V
OPERATIVE TEMPERATURE
- 30° C ÷ + 65° C
SEALING
IP65
DISPLAY TFT
Display TFT 12.1"
- Resolution: 1280 x 800 pixel
- Display mode: 16;9, Portrait/Landscape
- Luminosity: 500 cdm
- Touchscreen: Capacitive with bonding technology
- RTC: SI
- Resolution: 1280 x 800 pixel
- Display mode: 16;9, Portrait/Landscape
- Luminosity: 500 cdm
- Touchscreen: Capacitive with bonding technology
- RTC: SI
CONTROL SYSTEM
Freescale iMx6 Dual Core, 32 bit
- Frequency 850 Mhz
- Internal memory 8 GB flash
- RAM memory 1 GB
- Wake-up mode: Power supply, CAN message, ignition key
- Tempo di boot: < 1 sec from stdby, about 10 sec from cold boot
- Internal sensor temperature: YES
- Internal accelerometer / gyroscope: YES
- Keys: 4+4 softkeys on front panel, 1 softkey programmable also as ON/OFF (KEYS VERSION)
- Buzzer: 100 dB, volume adjustable
- CAN bus port: 4
- RS232: 1 port full modem, 1 port linux terminal
- USB port: 1 HOST external (KEYS VERSION), 2 HOST on connector, 1 OTG Device on connector
- Video INPUT: 2 PAL/NTSC simultaneos
- Connector: 2 x AMP automotive 26 pin (signal), 1 x M12 8 pin (video camera)
- Operative system: Linux, Android
- Standards: EMC industrial, automotive, agriculture, ISO 11783 (ISOBUS UT+TC)
- Programming languages: C, C++, QT/ QML
- Programming IDE: VT3, QT CREATOR
- Frequency 850 Mhz
- Internal memory 8 GB flash
- RAM memory 1 GB
- Wake-up mode: Power supply, CAN message, ignition key
- Tempo di boot: < 1 sec from stdby, about 10 sec from cold boot
- Internal sensor temperature: YES
- Internal accelerometer / gyroscope: YES
- Keys: 4+4 softkeys on front panel, 1 softkey programmable also as ON/OFF (KEYS VERSION)
- Buzzer: 100 dB, volume adjustable
- CAN bus port: 4
- RS232: 1 port full modem, 1 port linux terminal
- USB port: 1 HOST external (KEYS VERSION), 2 HOST on connector, 1 OTG Device on connector
- Video INPUT: 2 PAL/NTSC simultaneos
- Connector: 2 x AMP automotive 26 pin (signal), 1 x M12 8 pin (video camera)
- Operative system: Linux, Android
- Standards: EMC industrial, automotive, agriculture, ISO 11783 (ISOBUS UT+TC)
- Programming languages: C, C++, QT/ QML
- Programming IDE: VT3, QT CREATOR
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1083588
Code: 1083588
