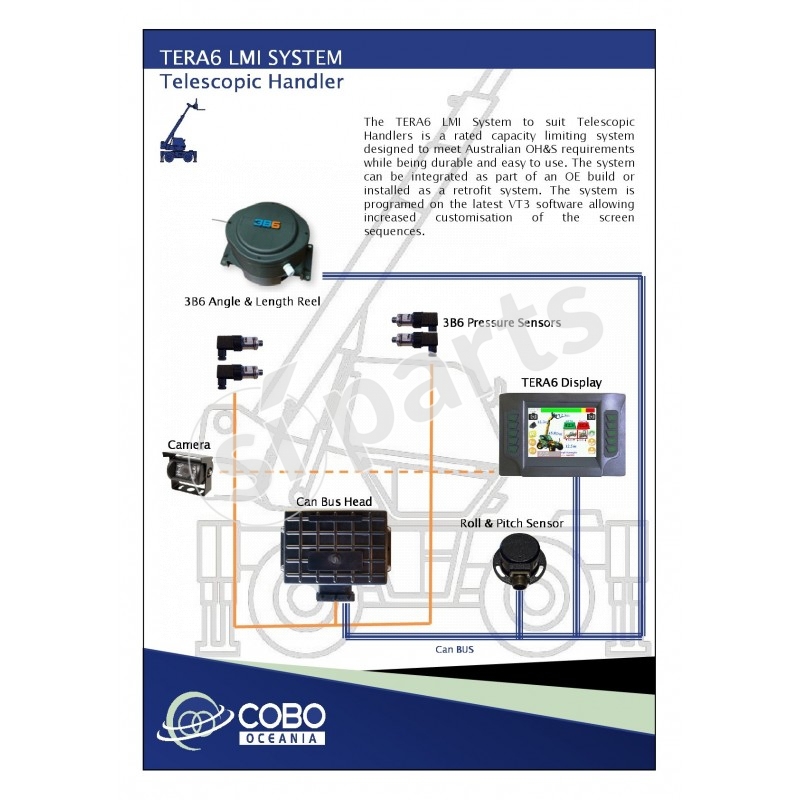

Descrizione TERA6 is a monitor with a 6.5” VGA (640x480) display with LED technology and 32 bit ARM™ processor. It is equipped with a 10 keys panel.
It has been designed to meet the harsh environment requests of any mobile machines using a CAN BUS network.
Based on Linux OS, TERA6 is the ideal HMI solution for any middle end application.
It manages also low power stand-by mode. It is provided with two PAL/NTSC video camera input, USB port, Ethernet, CAN bus.
TERA6 is fully programmable using VT3 software development tool, COBO proprietary IDE, that combines intuitive WYSIWYG graphic programming with IEC61131 standard.
TERA6 can be installed both in-dash or out-dash with its specific articulated support.
APPLICATIONS
- Dashboard for big telescopic or lattice boom cranes
- Medium size access platforms
- Agriculture tractors
- Road cleaning machines
POWER SUPPLY
- 9 - 30V (operates with vehicle power supply directly)
- Current Consumption 1,3A @ 12V (protection through external fuse)
- Current Consumption 0,65A @ 24V (protection through external fuse)
- Stand-by mode (low power) programmable via software
OPERATING TEMPERATURE
- 20°C ÷ + 70°C ( - 4°F ÷ + 158°F)
STORAGE TEMPERATURE
- 35°C ÷ + 85°C ( - 31°F ÷ + 185°F)
DISPLAY
- Active matrix TFT colour display, standard VGA, 262.144 colours, 6.5”
- Resolution: 640 x 480 pixels, dot pitch 0.204 mm
- Display Area: 130,56 x 97,92 mm
- Contrast Ratio: 250:1
- Luminance: 350 cdm
- Viewing Angle: horizontal 70°, vertical up side 40°, vertical down side 70°
- Backlight: double cold cathode fluorescent lamp
SISTEMA DI CONTROLLO
- Microprocessor core ARM™, 32bit, 400 MHz
- RAM memory 128 MB DDR
- Flash memory 128 MB
- Flash memory 4 MB for Bootloader
- Internal Watchdog
- Real Time Clock
- Internal memory expansion up to 4GB (SD card)
- Operating System: Linux Embedded (boot time 5 sec)
CONNECTIVITY
- 2 CAN bus, CAN2.0B (11 or 29 bit) compliant to ISO 11898-2, speed up to 1 Mbit/s. Standards available: CAN-Open, SAE J1939, ISO 11783 (ISOBUS)
- 1 serial port RS232 full UART, 16C550 compatible
- 1 serial port RS232 TX/RX
- 1 USB port on rear connector
- 1 Ethernet port 10/100 Mbps
- 2 video input PAL/NTSC
- 10 backlighted buttons on panel
- 1 buzzer
