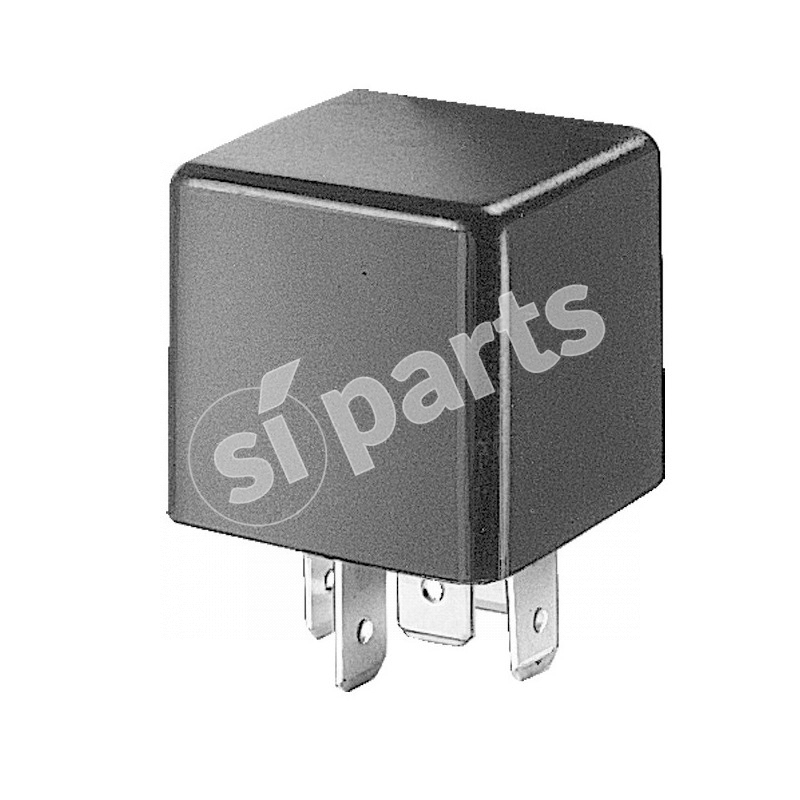

CIAM PRODUCTS- Original product
Description WORKING
- Switching the control unit on, the relay is de-energized and the outputs are:
NO contact (pin 53S) Open, NC contact (pin 31) +12V.
- Activating the input on pin T (+12V), the relay is energized and the outputs are:
NO contact (pin 53S), NC contact (pin 31) Open.
- After 10 seconds the relay is de-energized and the input is deactivated.
If during this 10-sec time other pulses get to the input, these are ignored.
- Switching the control unit on, the relay is de-energized and the outputs are:
NO contact (pin 53S) Open, NC contact (pin 31) +12V.
- Activating the input on pin T (+12V), the relay is energized and the outputs are:
NO contact (pin 53S), NC contact (pin 31) Open.
- After 10 seconds the relay is de-energized and the input is deactivated.
If during this 10-sec time other pulses get to the input, these are ignored.
POWER SUPPLY VOLTAGE V
12V
MAX LOAD
5 A
DELAY
10s
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1006040
Code: 00117136.02
Doc. Code: 00117136_$2
Pack 15 pieces.
