CIAM PRODUCTS- Original product

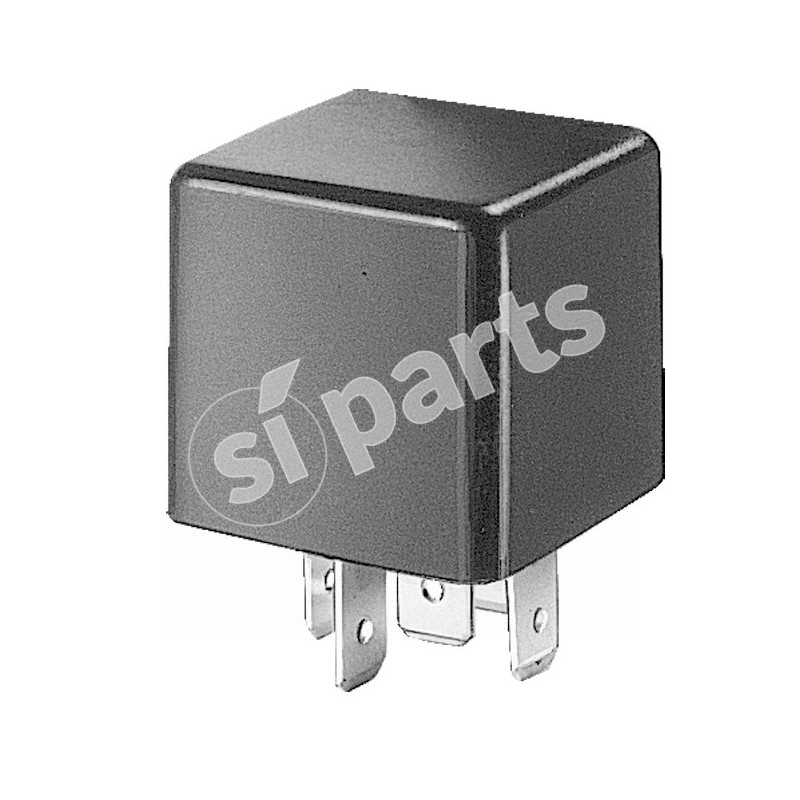

TIMER
Description
WORKING
- When the control unit switches on, the output (pin 53S) is Open.
- When the input is activated (pin T=+12V), the relay is energized
and the output is activated at +12V.
- After 30 sec the output is deactivated. If during this 30-sec
time other pulses get to the input, these are ignored.
- After 30 sec any change of input state doesnt change output state.
- When the control unit switches on, the output (pin 53S) is Open.
- When the input is activated (pin T=+12V), the relay is energized
and the output is activated at +12V.
- After 30 sec the output is deactivated. If during this 30-sec
time other pulses get to the input, these are ignored.
- After 30 sec any change of input state doesnt change output state.
POWER SUPPLY VOLTAGE V
12V
MAX LOAD
5 A
DELAY
30s
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027042
Code: 18.0127.0000.02
Doc. Code: 18-0127-0000-02
Pack 50 pieces.
