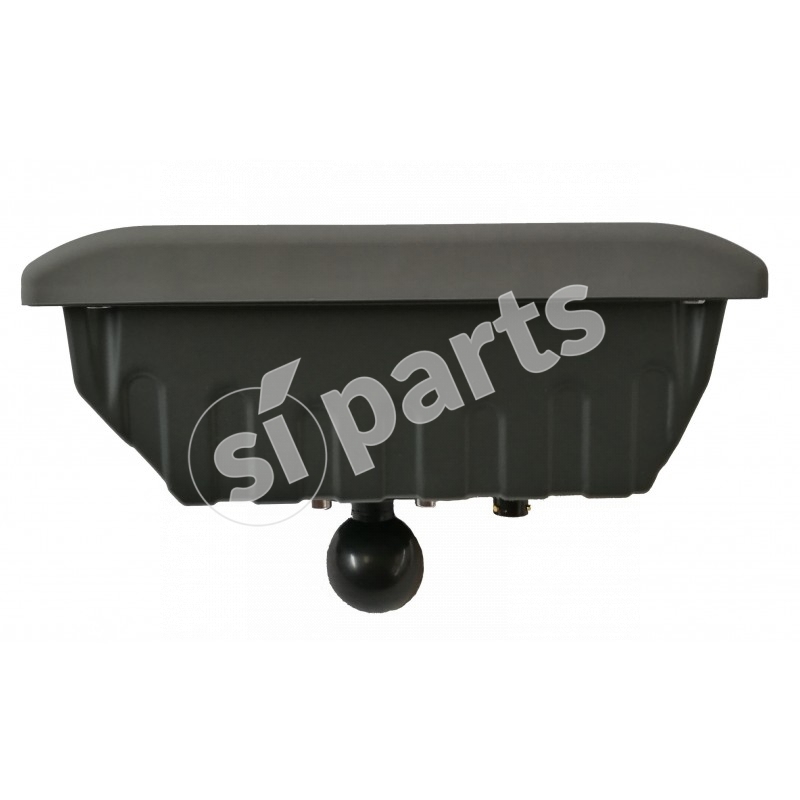

VIEW 2 DISPLAY HORIZONTAL/BRACKET

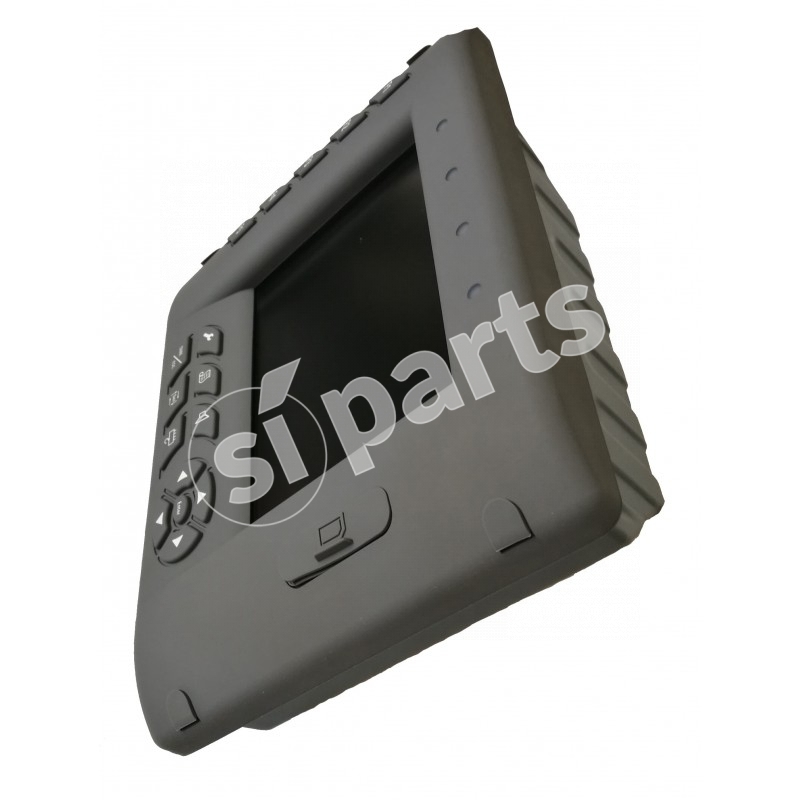

VIEW 2 display is a monitor with a 5.7” QVGA (320x240) display with LED technology, equipped with Freescale 16 bit processor and FPGA graphic accelerator. This architecture allows high performance, like 32bit processor based devices, but at lower cost. It is provided with an integrated 16 keys keypad, and it allows installation in landscape mode (horizontal) or portrait (vertical). VIEW 2 is an ideal solution to show parameters, data or any information available on the CAN network of the machine where it is installed. VIEW 2 can be also equipped with an additional board with several I/O, making it a real controller easily programmable for I/O logic management and integrated graphics. VIEW 2 is fully programmable using VT3 software development tool, COBO proprietary IDE, that combines intuitive WYSIWYG graphic programming with IEC61131 standard. VIEW 2 display can be installed both in-dash or out-dash with its specific articulated support.
APPLICATIONS
VIEW 2 display is a monitor with a 5.7” QVGA (320x240) display with LED technology, equipped with Freescale 16 bit processor and FPGA graphic accelerator. This architecture allows high performance, like 32bit processor based devices, but at lower cost. It is provided with an integrated 16 keys keypad, and it allows installation in landscape mode (horizontal) or portrait (vertical). VIEW 2 is an ideal solution to show parameters, data or any information available on the CAN network of the machine where it is installed. VIEW 2 can be also equipped with an additional board with several I/O, making it a real controller easily programmable for I/O logic management and integrated graphics. VIEW 2 is fully programmable using VT3 software development tool, COBO proprietary IDE, that combines intuitive WYSIWYG graphic programming with IEC61131 standard. VIEW 2 display can be installed both in-dash or out-dash with its specific articulated support.
APPLICATIONS
- DISPLAY FOR LOAD LIMITING DEVICE FOR ANY TYPE OF CRANE OR LIFTING MACHINE
- CONCRETE PUMPS
- CRUSHERS
- SMALL ACCESS PLATFORMS
- SMALL SIZE AGRICULTURE TRACTORS
- SMALL ACCESS PLATFORMS
- SMALL SIZE AGRICULTURE TRACTORS
- DASHBOARD FOR TELEHANDLERS O REACHSTACKERS
POWER SUPPLY V
9 - 30V (Operates on vehicle power supply directly)
HOUSING
ABS with silicon rubber
OPERATING TEMPERATURE
- 20° C ÷ + 70° C (- 4° F ÷ + 158° F)
STORAGE TEMPERATURE
- 35° C ÷ + 85° C (- 31° F ÷ +185° F)
SEALING
IP65
DISPLAY
- Color
- Resolution: 320 x 240 pixel
- Contrast ratio: 400:1
- Brightness: 800 cdm
- Viewing angle: 130° orizzontale e verticale
- Backlight type: LED bianchi
- Landscape o portrait installation
- Resolution: 320 x 240 pixel
- Contrast ratio: 400:1
- Brightness: 800 cdm
- Viewing angle: 130° orizzontale e verticale
- Backlight type: LED bianchi
- Landscape o portrait installation
CONTROL SYSTEM
- Microprocessor Freescale 16bit, 40 MHz
- Graphic accelerator on FPGA Atmel
- RAM memory 512 KB
- Flash memory 1.2 MB
- EEPROM memory 8 KB for parameter storage
- Real Time Clock with 240 bytes SRAM and rechargeable cackup battery
- 1 SD slot esterno (up to 2GB)
- Graphic accelerator on FPGA Atmel
- RAM memory 512 KB
- Flash memory 1.2 MB
- EEPROM memory 8 KB for parameter storage
- Real Time Clock with 240 bytes SRAM and rechargeable cackup battery
- 1 SD slot esterno (up to 2GB)
CONNECTIVITY
- 2 CAN bus, CAN2.0B 11 o 29 bit, ISO 11898-2 compliance, speed up to 1 Mbit/s
- 1 serial lines RS232
- 1 buzzer
- 1 serial lines RS232
- 1 buzzer
I/O RESOURCES
- 12 analog/digital inputs configurable
- 6 on/off outputs (2A at 24V)
- 6 on/off outputs (2A at 24V)
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1032016
Code: 43.31.3201A0.01
